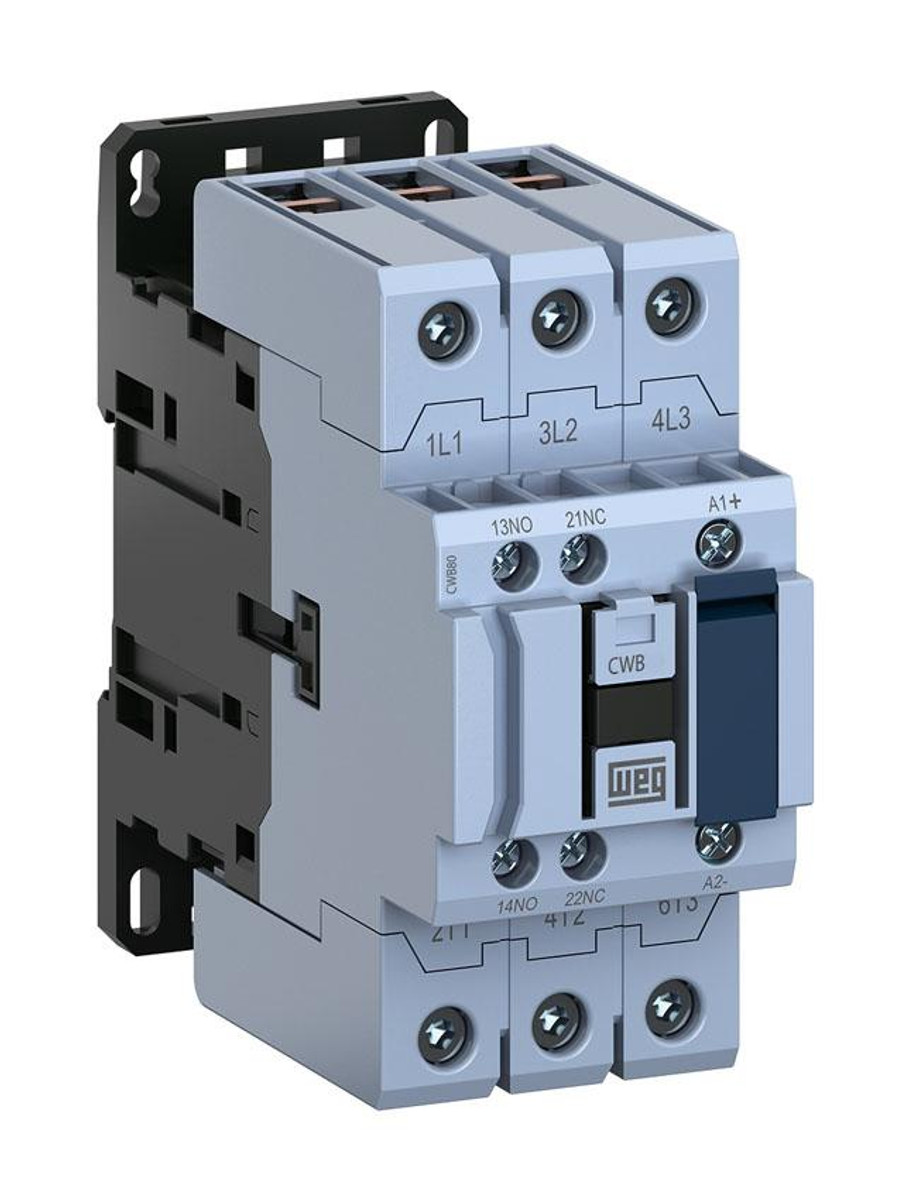

Product image is representative only, please verify specifications.
CWB40-11-30C03
Alt: 13538738
$83.85
IEC Contactor, 40 Amp (40A), 1NO/1NC Auxiliary Contacts, 3NO, 24VDC, Screw Terminal, UL508
- Weight:
- 2.27 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- Zero-width mechanical interlock for applications that require them
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
Specifications
Alternate Part Number
13538738
Amp Rating
40 Amp
Coil Voltage
24V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
UL508
Series
CWB Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
24VDC
Warranty
18 Months
Weight
2.273
Features Include:
- Main Contacts (power): 1 NO + 1 NC
- Control Voltage:24 VDC
- Isolation voltage Ui: 690/600 V
- Number of Main Contacts: 3 NO
- Rated Current In - AC-3 (Ue ≤ 440 V): 40A
- Rated current In - AC-4: 18.5A
- Rated impulse withstand voltage Uimp: 6 kV
- Degree of Protection (IEC 60529) - Main Terminals: IP10
- Degree of Protection (IEC 60529) - Coils and auxiliary contacts: IP20
- Operation Temperature Ratings: -25 °C - +55 °C
- Storage Temperature Ratings: -55 °C - +80 °C

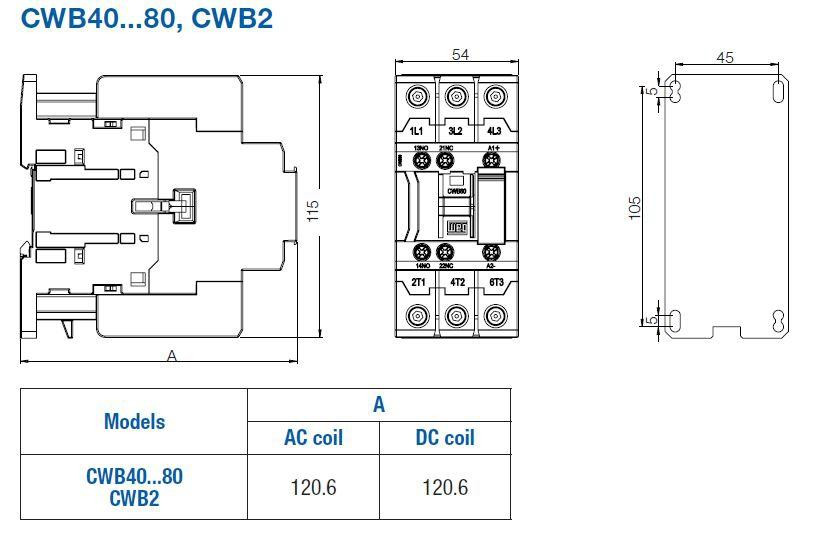

Dimensions:
- Height: 115 mm (4.53 in)
- Width: 54 mm (2.13 in)
- Depth: 120.7 mm (4.75 in)
