Product image is representative only, please verify specifications.

Weg

CWM400-22-30E36

Alt: 11747363

$1,268.50

Contactor, IEC, 400 Amps, 2NO/2NC, 100-240VAC/DC, 3-Pole, UL508, Use RW Overload Relay

Minimum Purchase:
1 unit
Adding to cart… The item has been added
CWM400-22-30E36
CWM400-22-30E36
CWM400-22-30E36
CWM400-22-30E36
CWM400-22-30E36
CWM400-22-30E36
Description

Features Include:

  • Control voltage: 100-240V 50/60Hz/100-220V DC
  • Rated current In - AC-3 (Ue ≤ 440 V): 400 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 690 V
  • Rated operational voltage Ue - UL/CSA: 600 V

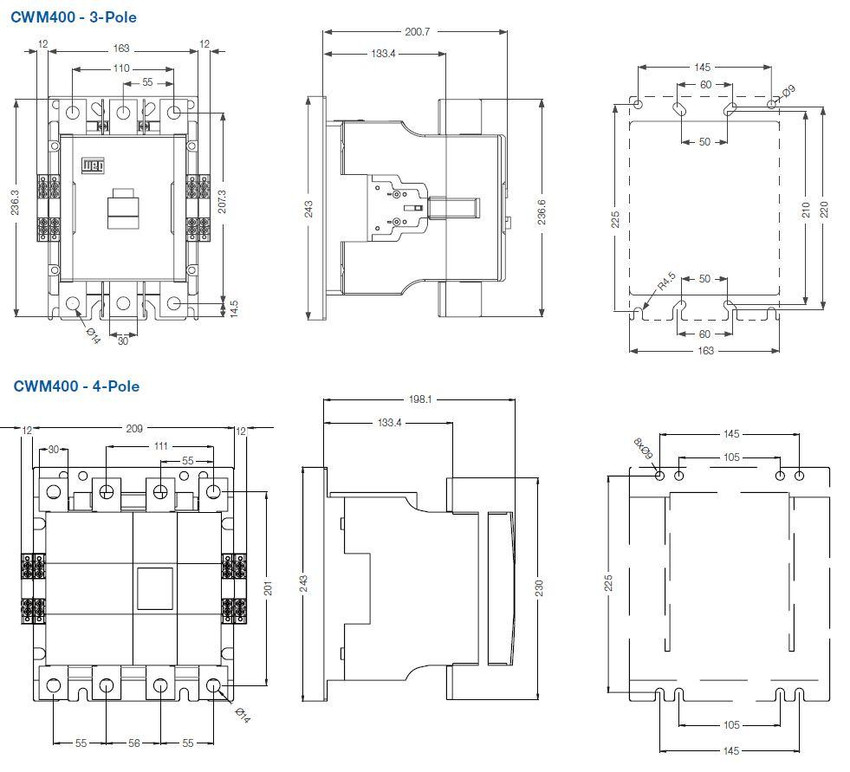

  • Height: 243 mm (9.57 in)
  • Width: 209 mm (8.23 in)
  • Depth: 200.7 mm (7.90 in)
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
CWM400-22-30D82

Weg

CWM400-22-30D82

Contactor, IEC, 400 Amps, 2NO/2NC, 440-575VAC, 3-Pole, UL508, Use RW Overload Relay

$1,268.50
SPT0/22

Teco Westinghouse

SPT0/22

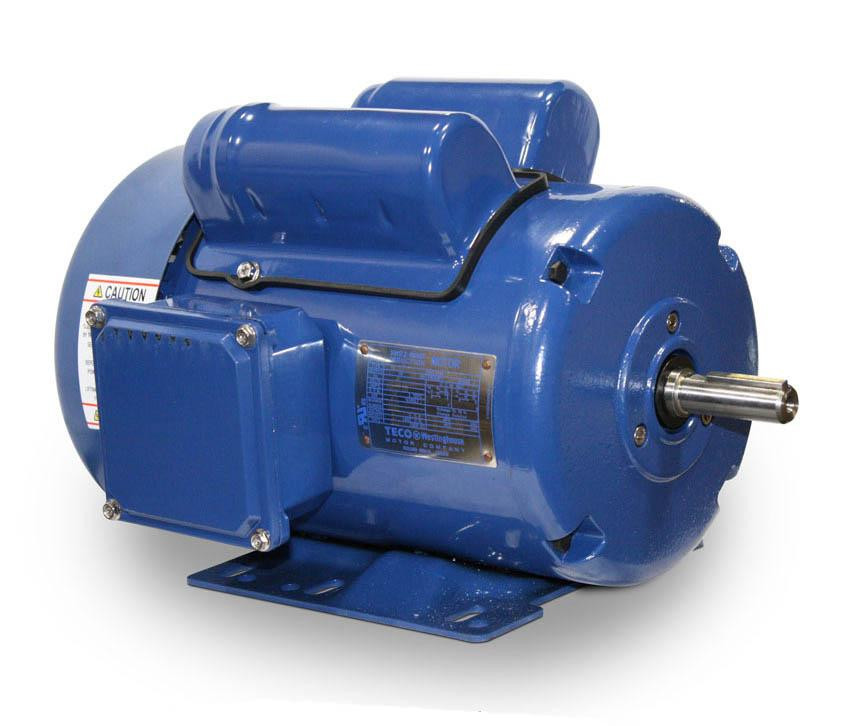

Motor, Single Phase, .25hp, 3600rpm, 115/208/230V, 48 Frame, TEFC, HVAC, NEMA Premium, IP44
