Weg
CWB32-11-30D33
IEC Contactor, 32 Amp (32A), 1NO/1NC Auxiliary Contacts, 3NO, 380VAC, 50/60Hz, Screw Terminal, UL508
$54.60
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
Available Now!

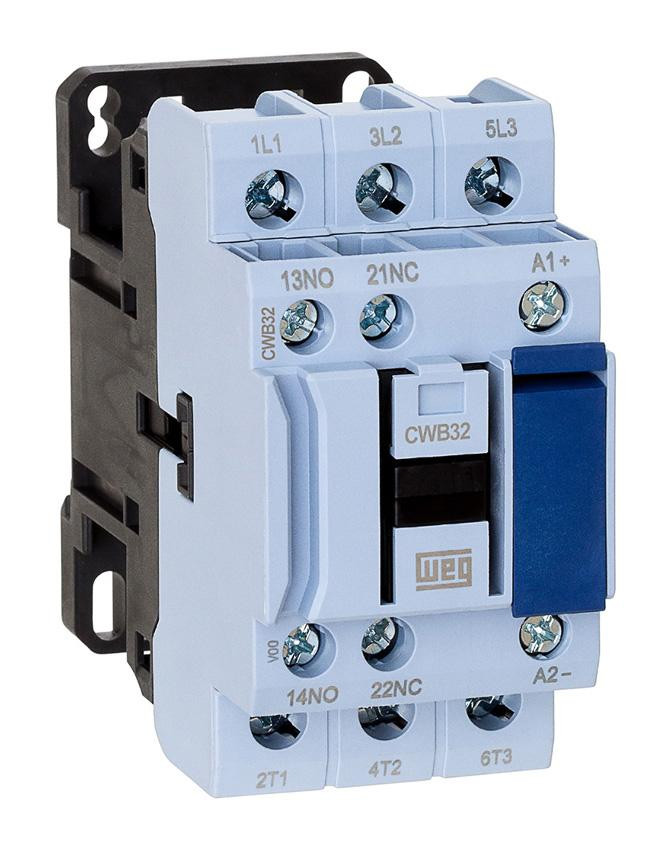

Product image is representative only, please verify specifications.
Available Now!
(5 in stock)
CWB32-11-30V24
Alt: 13437003
$54.60
IEC Contactor, 32 Amp (32A), 1NO/1NC Auxiliary Contacts, 3NO, 208-240VAC, Screw Terminal, UL508
- Weight:
- 1.12 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- Zero-width mechanical interlock for applications that require them
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
Specifications
Alternate Part Number
13437003
Amp Rating
32 Amp
Coil Voltage
240V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWB Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
208/240VAC
Warranty
18 Months
Weight
1.116
Quantity
5
Features Include:
- Control Voltage: 180-208V 50Hz/208-240V 60Hz
- Rated current In - AC-3 (Ue ≤ 440 V): 32A
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Main contact: 3 NO
- Height: 85 mm (3.35 in)
- Width: 45 mm (1.77 in)
- Depth: 93 mm (3.66 in)
- “Zero-Width” Mechanical Interlock
- Simple and Compact Mounting of Surge Suppressor Blocks
- Contactor Coil Operated on AC or DC
- Simple and Organized Control Circuits
- Additional Contact Blocks
- Easy Access Power and Control Terminals
