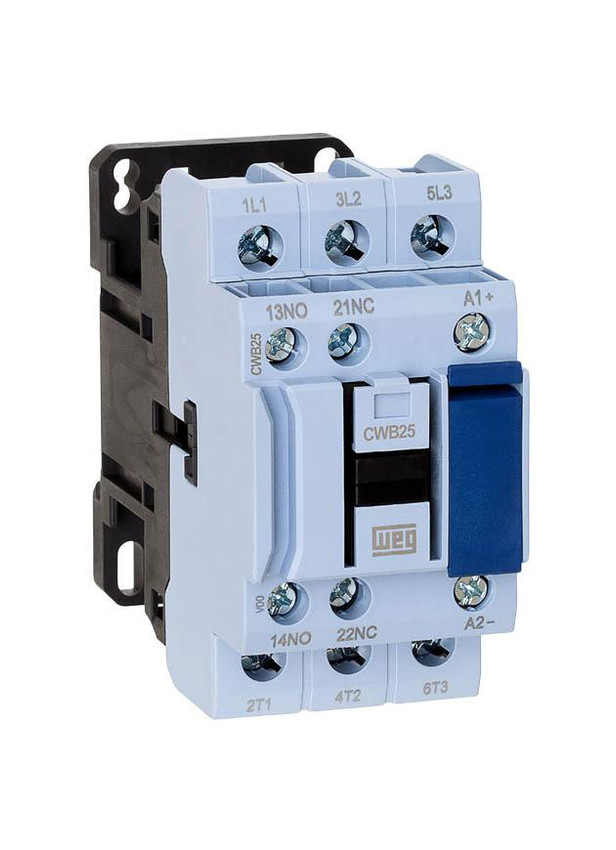

CWB25-11-30D77
Alt: 12961446
$46.02
IEC Contactor, 25 Amp (25A), 1NO/1NC Auxiliary Contacts, 3NO, 208VAC, 50/60Hz, Screw Terminal, UL508
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CWB series of IEC contactors offer:
- Built-in auxiliary contacts 1NO + 1NC
- Compact, 45mm wide up to 38 amp
- UL 508, IEC 60947
- Easy access to power and control terminals
- Wide range of voltages available in only two coil versions - one for AC and one for DC that fit the entire 9 to 38 amp range
- Zero-width mechanical interlock for applications that require them
- Overload relays for this series are RW27-2D, they can be directly mounted on the CWB contactors for easy connection to the motor
Features Include:
- Control Voltage: 208V 50/60Hz
- Rated current In - AC-3 (Ue ≤ 440 V): 25A
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Main contact: 3 NO
- Height: 85 mm (3.35 in)
- Width: 45 mm (1.77 in)
- Depth: 93 mm (3.66 in)
- “Zero-Width” Mechanical Interlock
- Simple and Compact Mounting of Surge Suppressor Blocks
- Contactor Coil Operated on AC or DC
- Simple and Organized Control Circuits
- Additional Contact Blocks
- Easy Access Power and Control Terminals
Technical Information:
- Weg CWB25-11-30D77 Datasheet
- Weg CWB Series Contactors Flyer
- Weg CWB Series Contactor Technical Data
- Weg CWB and RW27-2D Brochure
- Weg Controls Reference Codes Catalog
- Weg Power and Control Products 2020 Catalog
Installation Guides:
Learn more about Contactors, Starters & Overload Relays here!
