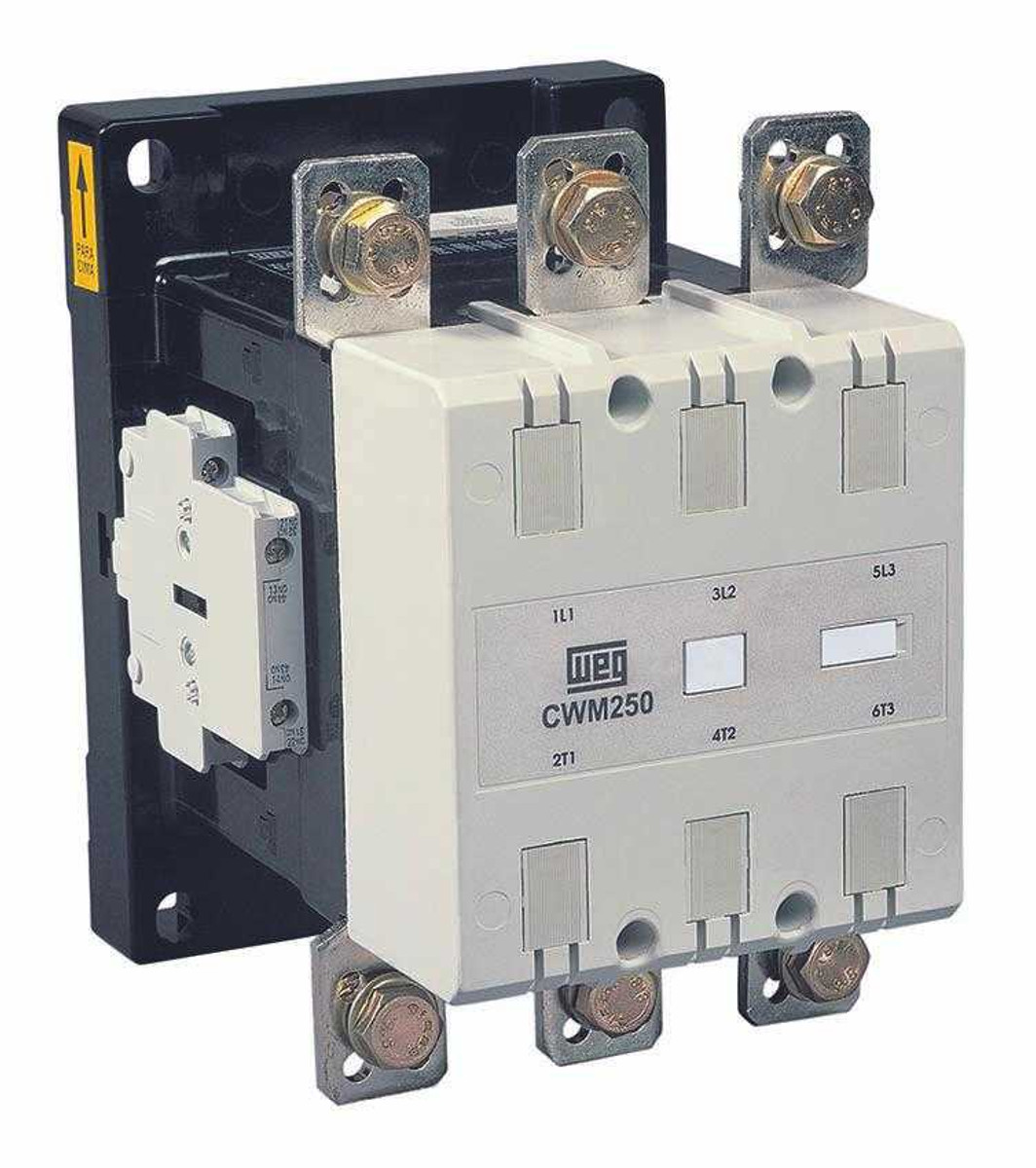

Weg
CWM250-22-30E21
Contactor, IEC, 250 Amp (250A), 2NO/2NC, 430-500VAC/DC, 3 Pole, UL508, Use RW Overload Relay
$825.60
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
Product image is representative only, please verify specifications.
CWM250-22-30E13
Alt: 10535748
$825.60
Contactor, IEC, 250 Amps, 2NO/2NC, 208-250VAC/DC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 14.90 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Specifications
Alternate Part Number
10535748
Amp Rating
250 Amp
Coil Voltage
See Spec or N/A
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWM Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
208/240VAC
Warranty
18 Months
Weight
14.9
Features Include:
- Control voltage: 208-250V 50/60Hz-DC
- Rated current In - AC-3 (Ue ≤ 440 V): 250 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 1000 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 200 mm (7.87 in)
- Width: 144 mm (5.67 in)
- Depth: 181 mm (7.13 in)
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
Downloads
- Weg CWM250-22-30E13 Datasheet
- Weg CWM Series Contactors Flyer
- Weg CWM Series Contactors Technical Data
- Weg CWM Series Contactors Brochure
- Weg Controls Reference Codes Catalog
- Weg Automation Drives & Controls Catalog
- Weg Low Voltage Switch & Control Gear Catalog
- Weg Power and Control Products Catalog
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
CWM250-22-30E02
Contactor, IEC, 250 Amps, 2NO/2NC, 24-28VAC/DC, 3-Pole, UL508, Use RW Overload Relay
$825.60
Weg
CWM300-22-30E13
Contactor, IEC, 300 Amps, 2NO/2NC, 208-250VAC/DC, 3-Pole, UL508, Use RW Overload Relay
$924.50
Weg
CWM250-22-30E10
Contactor, IEC, 250 Amps, 2NO/2NC, 110-130VAC/DC, 3-Pole, UL508, Use RW Overload Relay
$825.60

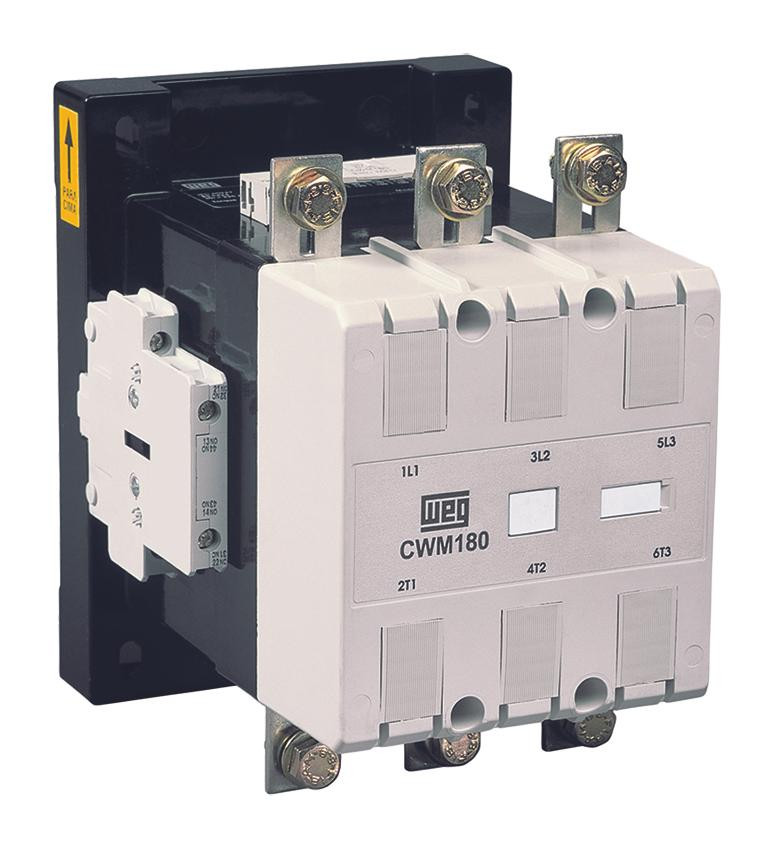

Weg
