Available Now! CWM25-00-30V47

Product image is representative only, please verify specifications.

Available Now! (2 in stock)
Weg

CWM25-00-30V47

Alt: 10046130

$50.74

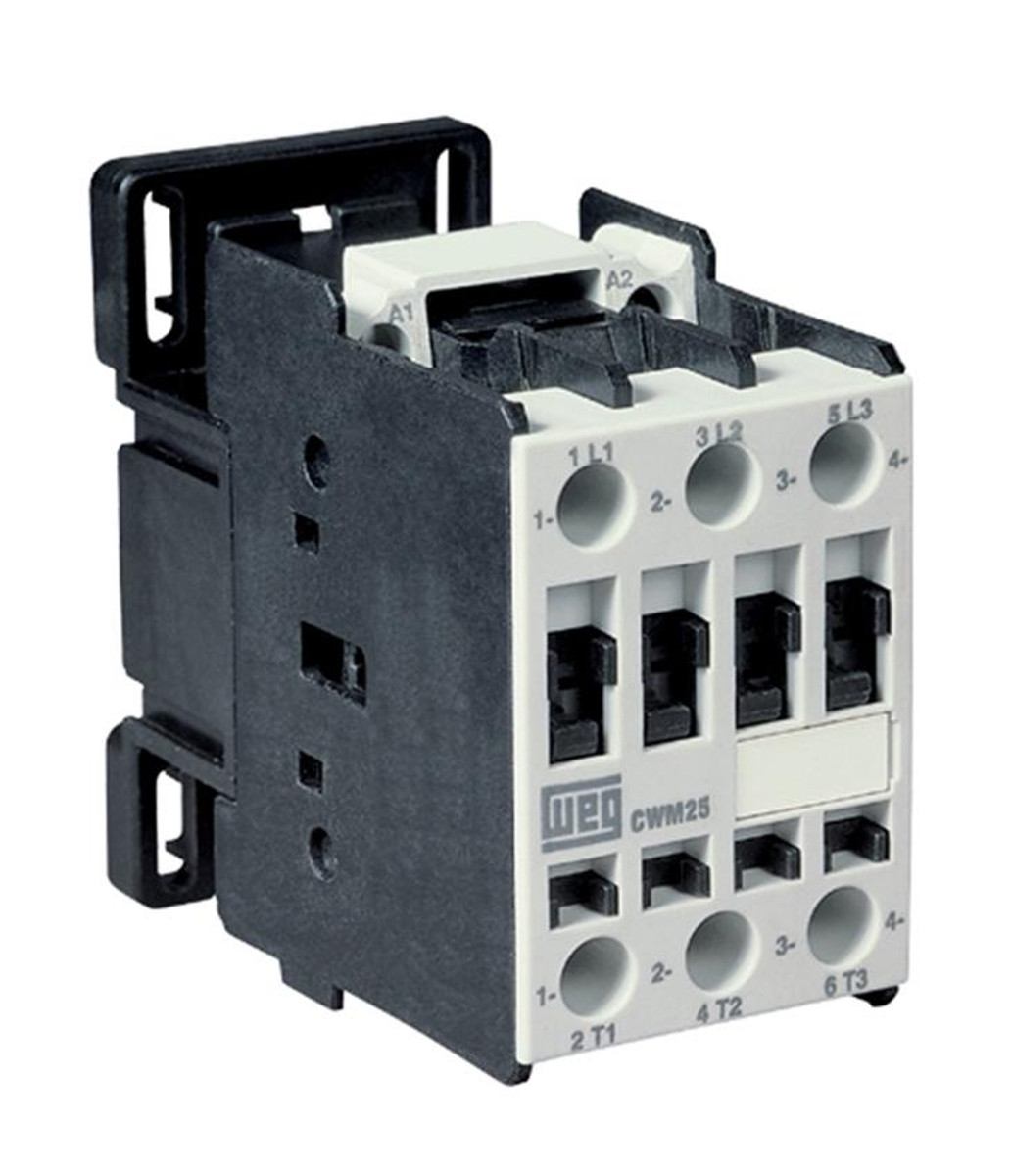

Contactor, IEC, 25 Amps, 480VAC, 3-Pole, UL508, Use RW Overload Relay

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Control voltage: 400-415V 50Hz/480V 60Hz
  • Rated current In - AC-3 (Ue ≤ 440 V): 25 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 690 V
  • Rated operational voltage Ue - UL/CSA: 600 V

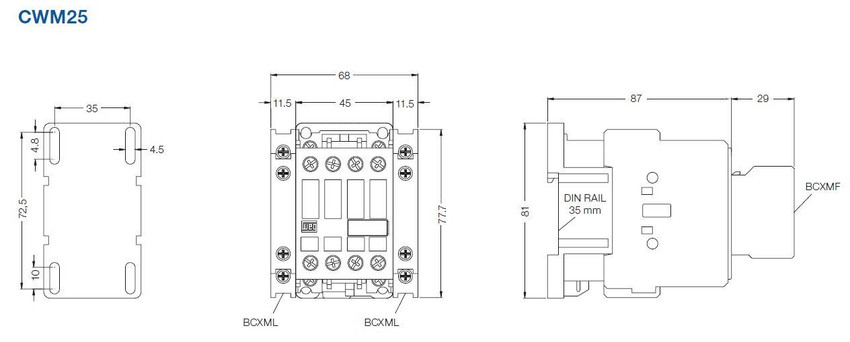

  • Height: 81 mm (3.19 in)
  • Width: 45 mm (1.77 in)
  • Depth: 87 mm (3.43 in)
  • Panel mountable or 35mm DIN Rail up to the CWM105 Series
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
