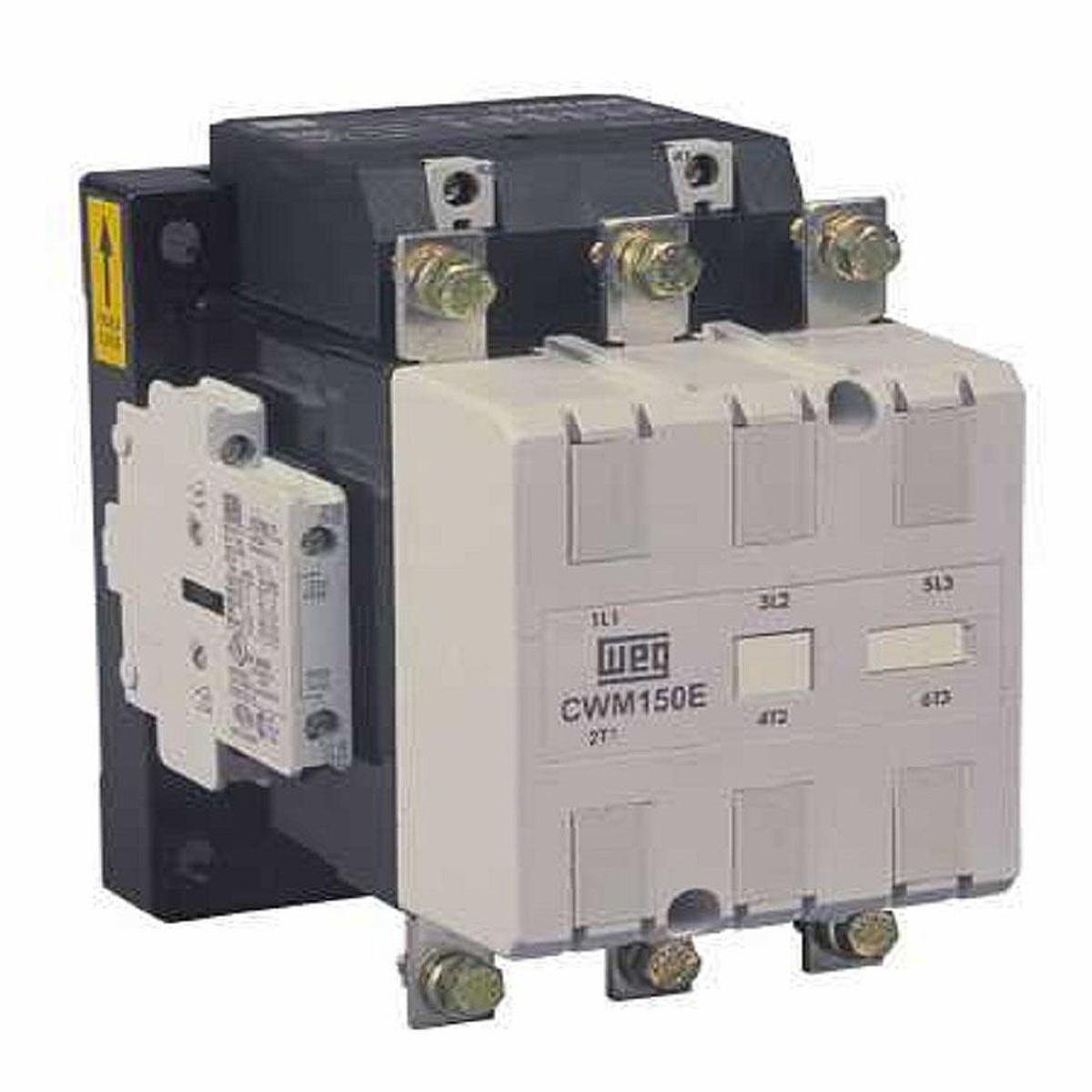

CWM180-22-30E02

Product image is representative only, please verify specifications.

Weg

CWM180-22-30E02

Alt: 10535727

$580.50

Contactor, IEC, 180 Amps, 2NO/2NC, 24-28VAC/DC, 3-Pole, UL508, Use RW Overload Relay

Weight:
11.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Control voltage: 24-28V 50/60Hz-DC
  • Rated current In - AC-3 (Ue ≤ 440 V): 180 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 690 V
  • Rated operational voltage Ue - UL/CSA: 600 V

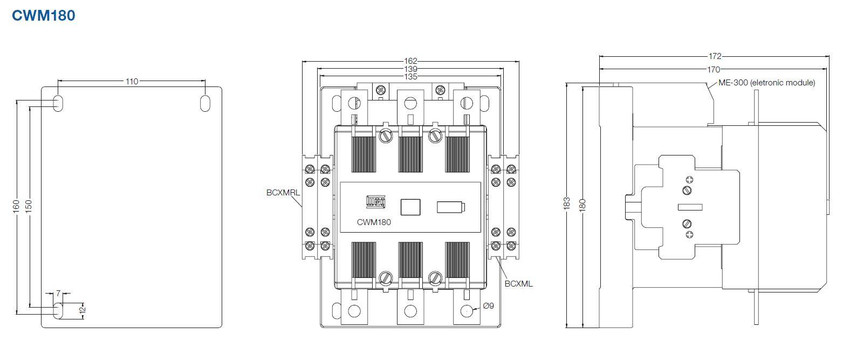

  • Height: 183 mm (7.20 in)
  • Width: 135 mm (5.31 in)
  • Depth: 172 mm (6.77 in)
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
