$44.29
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(1 in stock)
CWM18-10-30V04
Alt: 10409931
$44.29

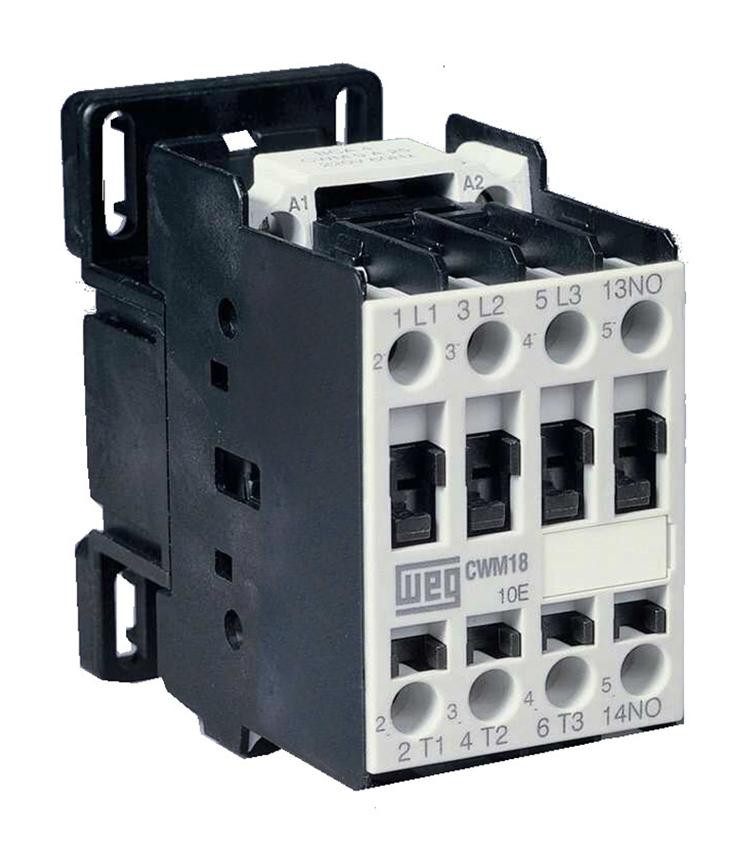

Contactor, IEC, 18 Amps, 1NO, 24VAC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Specifications
Alternate Part Number
10409931
Amp Rating
18 Amp
Coil Voltage
24V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWM Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
24VAC
Warranty
18 Months
Weight
1
Quantity
1
Features Include:
- Control voltage: 20V 50Hz/24V 60Hz
- Rated current In - AC-3 (Ue ≤ 440 V): 18 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 81 mm (3.19 in)
- Width: 45 mm (1.77 in)
- Depth: 87 mm (3.43 in)
- Panel mountable or 35mm DIN Rail up to the CWM105 Series
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
