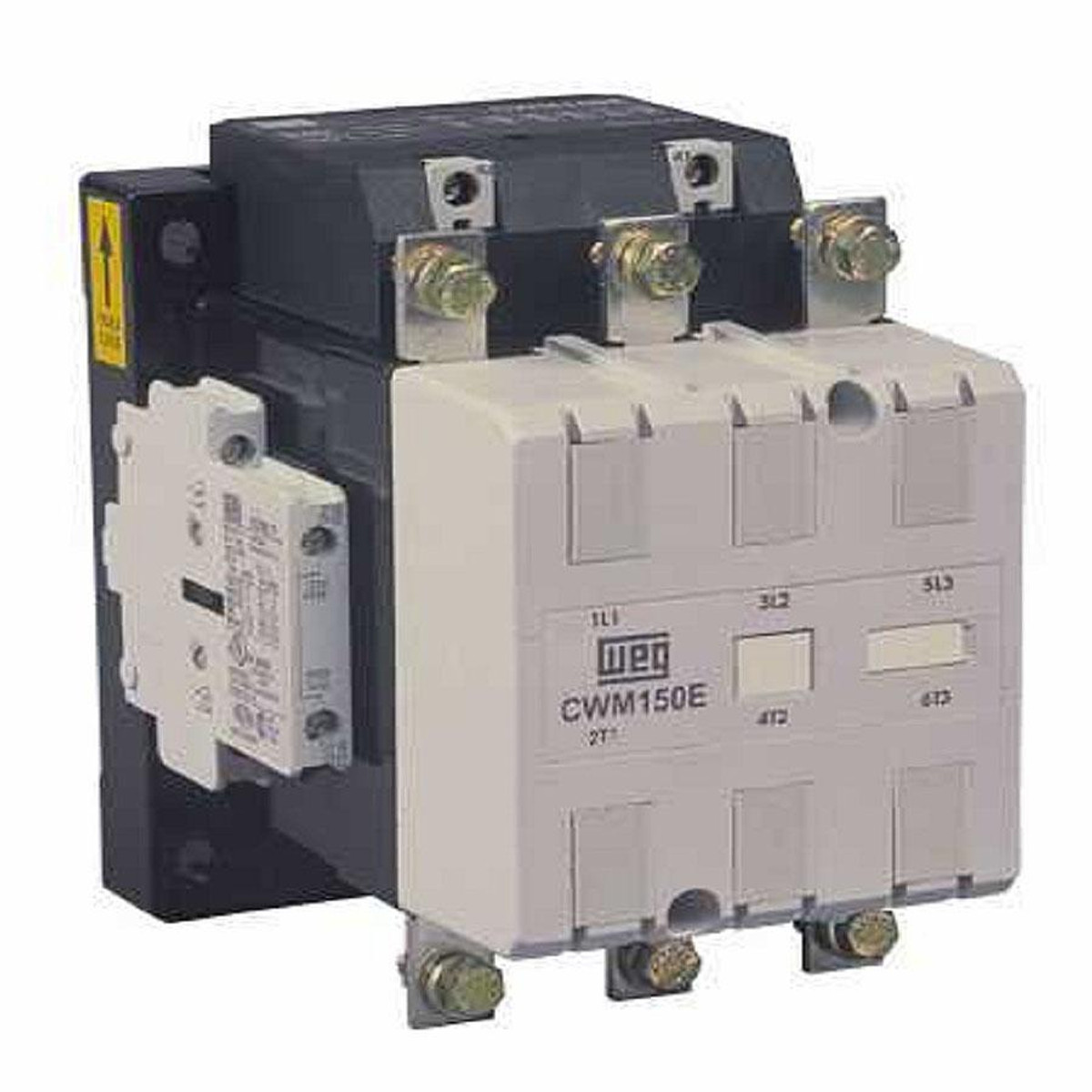

Product image is representative only, please verify specifications.
CWM150-22-30E02
Alt: 10535726
$412.80
Contactor, IEC, 150 Amps, 2NO/2NC, 24-28VAC/DC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 6.80 LBS
- Minimum Purchase:
- 1 unit
Specifications
Alternate Part Number
10535726
Amp Rating
150 Amp
Coil Voltage
24V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWM Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
24V AC/DC
Warranty
18 Months
Weight
6.8
Features Include:
- Control voltage: 24-28V 50/60Hz-DC
- Rated current In - AC-3 (Ue ≤ 440 V): 150 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 1000 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 162.5 mm (6.40 in)
- Width: 118 mm (4.65 in)
- Depth: 147 mm (5.79 in)
- Panel mountable or 35mm DIN Rail up to the CWM105 Series
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
Downloads
- Weg CWM150-22-30E02 Datasheet
- Weg CWM Series Contactors Flyer
- Weg CWM Series Contactors Technical Data
- Weg CWM Series Contactors Brochure
- Weg Controls Reference Codes Catalog
- Weg Automation Drives & Controls Catalog
- Weg Low Voltage Switch & Control Gear Catalog
- Weg Power and Control Products Catalog
