CWM12-10-30V24
Alt: 10046464
$38.27

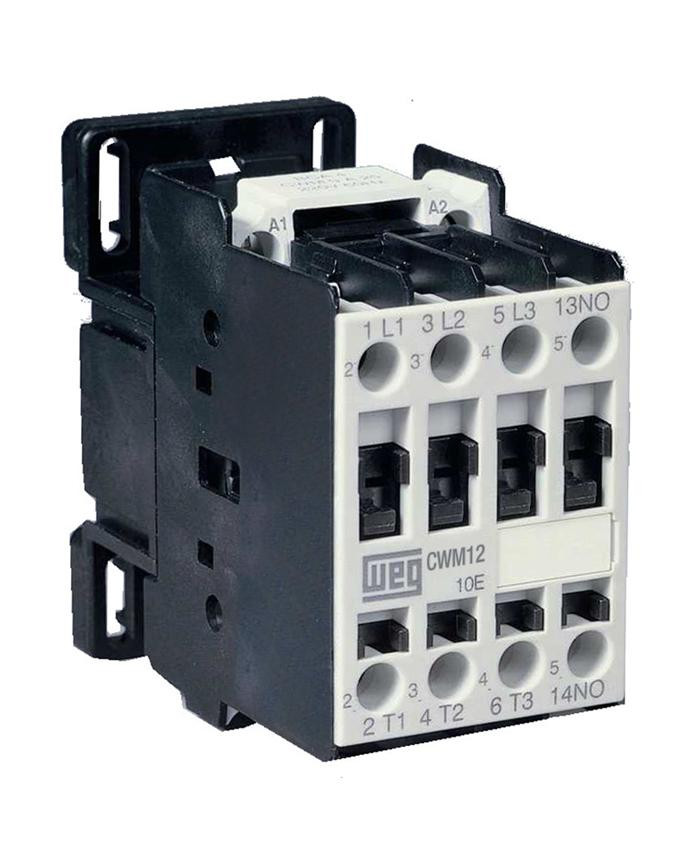

Contactor, IEC, 12 Amps, 1NO, 208-240VAC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Specifications
Alternate Part Number
10046464
Amp Rating
12 Amp
Coil Voltage
240V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWM Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
208/240VAC
Warranty
18 Months
Weight
1
Features Include:
- Control voltage: 180-208V 50Hz/208-240V 60Hz
- Rated current In - AC-3 (Ue ≤ 440 V): 12 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V

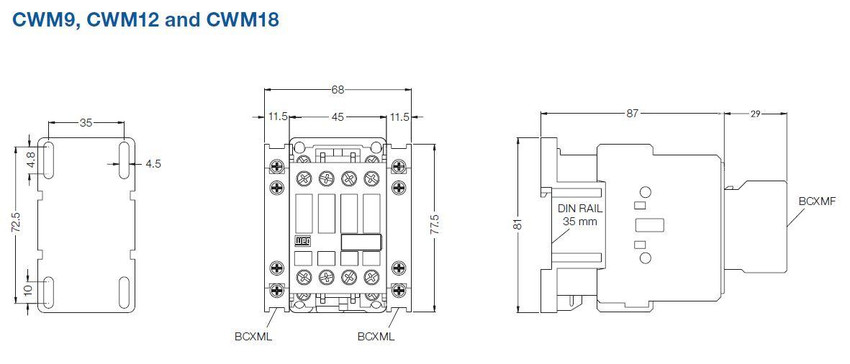

- Height: 81 mm (3.19 in)
- Width: 45 mm (1.77 in)
- Depth: 87 mm (3.43 in)
- Panel mountable or 35mm DIN Rail up to the CWM105 Series
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$38.27
$38.27
$38.27
Weg
CWC09-10-30V24
Mini Contactor, 9 Amp, 1NO Auxiliary Contact, 3NO Power Poles, 180-208V 50Hz/208-240V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$15.34
$44.29
Weg

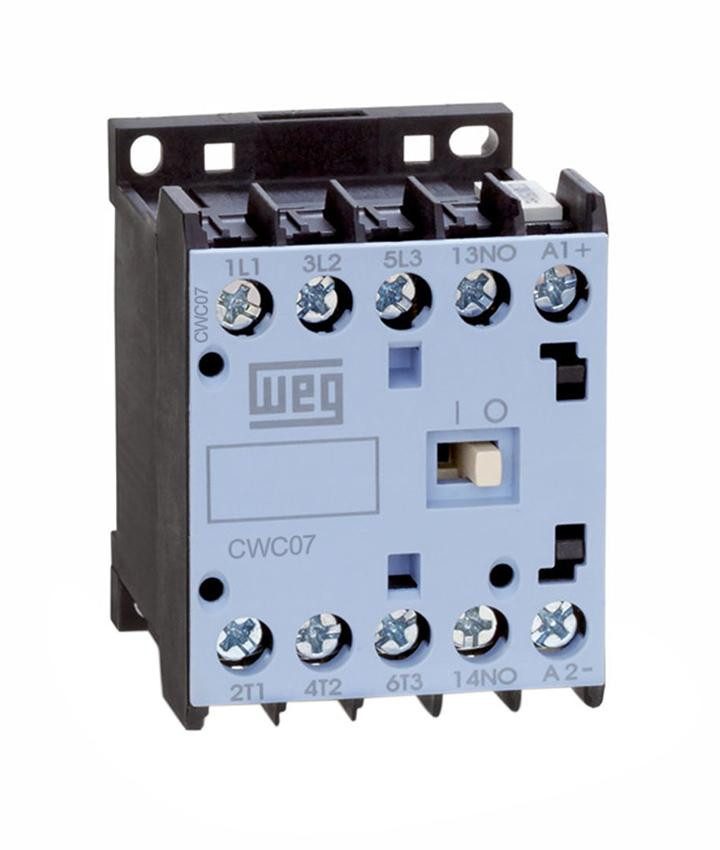

CWC07-10-30V24
Mini Contactor, 7 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 180-208V 50Hz/208-240V 60Hz, Screw Terminal, IP20, 2.28" x 1.77" x 2..05" (HWD), CWC Series
$14.16
$30.96
Weg
CWC016-10-30V24
Mini Contactor, 16 Amp, 1NO Auxiliary Contacts, 3NO Power Poles, 180-208V 50Hz/208-240V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$20.65
