Available Now! CWM12-10-30V18

Product image is representative only, please verify specifications.

Available Now! (1 in stock)
Weg

CWM12-10-30V18

Alt: 10045471

$38.27

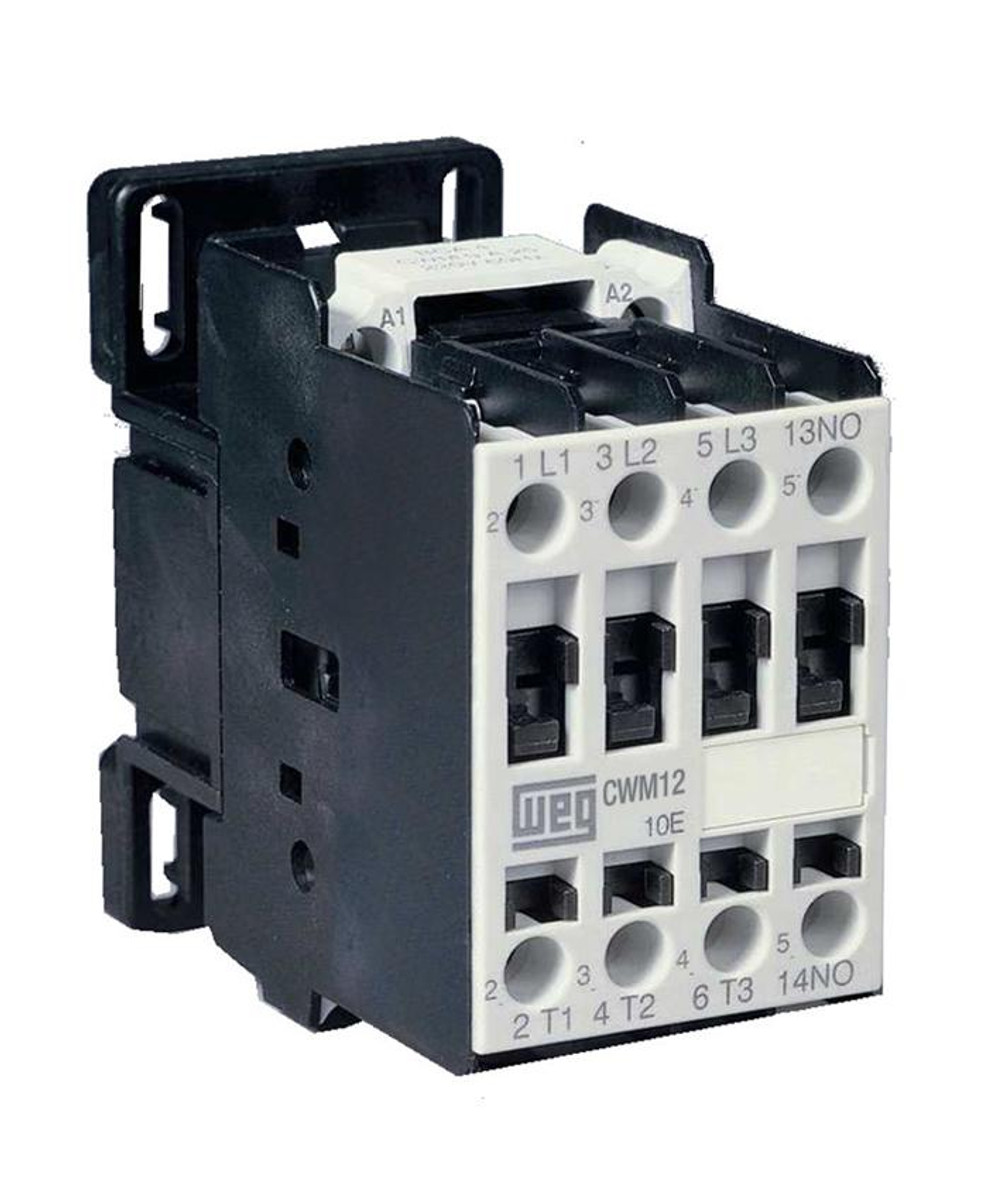

Contactor, IEC, 12 Amps, 1NO, 120VAC, 3-Pole, UL508, Use RW Overload Relay

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Control voltage: 110V 50Hz/120V 60Hz
  • Rated current In - AC-3 (Ue ≤ 440 V): 12 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 690 V
  • Rated operational voltage Ue - UL/CSA: 600 V

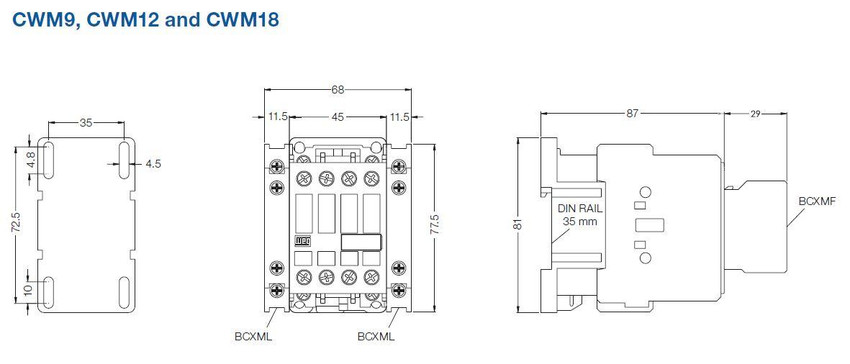

  • Height: 81 mm (3.19 in)
  • Width: 45 mm (1.77 in)
  • Depth: 87 mm (3.43 in)
  • Panel mountable or 35mm DIN Rail up to the CWM105 Series
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Weg

CWM12-01-30V18

Contactor, IEC, 12 Amps, 1NC, 120VAC, 3-Pole, UL508, Use RW Overload Relay

$38.27

Weg

CWM12-10-30V04

Contactor, IEC, 12 Amps, 1NO, 24VAC, 3-Pole, UL508, Use RW Overload Relay

$38.27

Weg

CWM12-10-30V24

Contactor, IEC, 12 Amps, 1NO, 208-240VAC, 3-Pole, UL508, Use RW Overload Relay

$38.27
Available Now!

Weg

CWM12-10-30V47

Contactor, IEC, 12 Amps, 1NO, 480VAC, 3-Pole, UL508, Use RW Overload Relay

$38.27
Available Now!

Weg

CWM9-10-30V18

Contactor, IEC, 9 Amps, 1NO, 120VAC, 3-Pole, UL508, Use RW Overload Relay

$30.96

Weg

CWC07-10-30V18

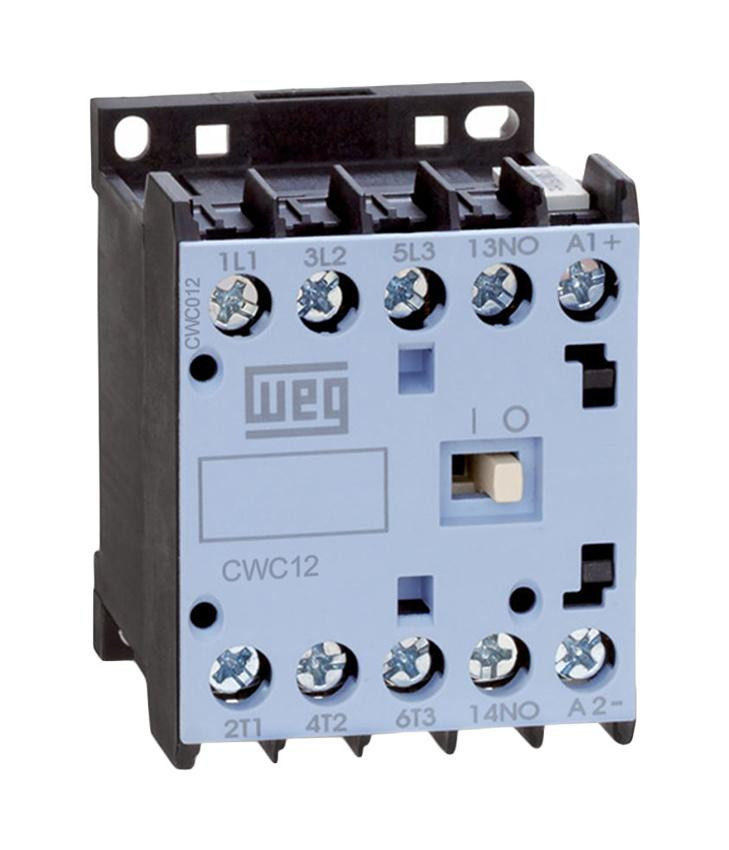

Mini Contactor, 7 Amp, 1NO Auxiliary Contact, 3NO Power Poles, 110VAC, 50Hz/120VAC, 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
