Product image is representative only, please verify specifications.
CWM12-01-30V18
Alt: 10186208
$38.27
Contactor, IEC, 12 Amps, 1NC, 120VAC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Specifications
Alternate Part Number
10186208
Amp Rating
12 Amp
Coil Voltage
120V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated, UL508
Series
CWM Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
110/120VAC
Warranty
18 Months
Weight
1
Features Include:
- Control voltage: 110V 50Hz/120V 60Hz
- Rated current In - AC-3 (Ue ≤ 440 V): 12 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V

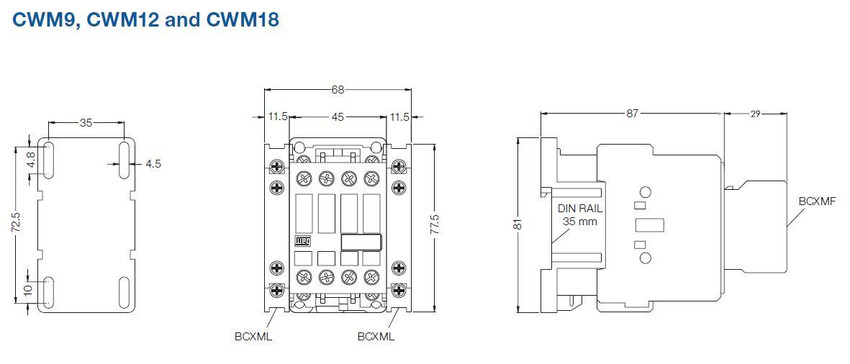

- Height: 81 mm (3.19 in)
- Width: 45 mm (1.77 in)
- Depth: 87 mm (3.43 in)
- Panel mountable or 35mm DIN Rail up to the CWM105 Series
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
