SCE-924B

SCE-924B

$1,584.43

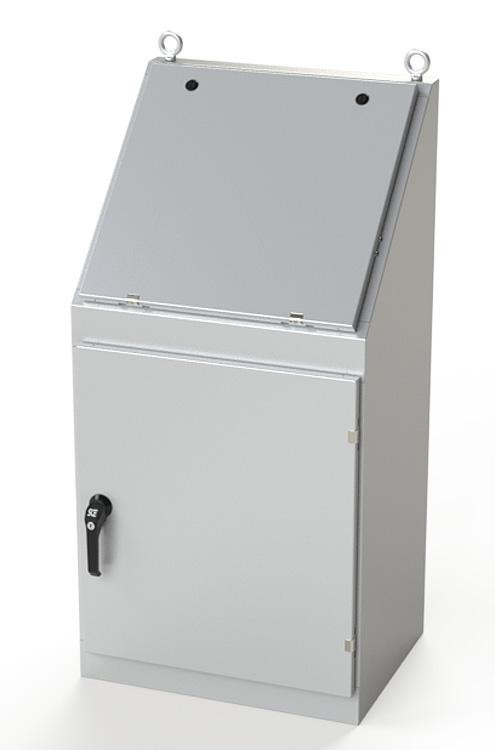

Console (Series 9), 48.00 x 24.00 x18.00" HWD, 0.075 Carbon Steel, ANSI-Gray, NEMA/UL 3R, 12, NEMA 13, IP55

Weight:
136.80 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

  • Modular enclosures
    • Endless combinations, multiple door arrangements, up to ten
    • Modular units work around each other for users to interact with them and equipment they hold
  • Wall mount enclosures
    • Generally the most expensive group
    • Indoor or outdoor options
    • Available as pushbutton enclosures up to large electrical requirements
  • Free-standing and floor-mounted enclosures
    • Mostly used outdoors and needing multi-door
    • Generally used for a large amount of electical components, single or multiple door
  • Non-Metallic enclosures
    • Includes fiberglass, polycarbonate
    • Used to protect from corrosion, UV rays or very damp conditions
    • Allows windowed or windowless
    • Includes pushbutton, junction, wall-mount and many other options
  • Operator system enclosures
    • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Series Features Include:

  • 0.075 In. carbon steel.
  • Sloping control panel attached with concealed hinge on bottom edge.
  • Door opens to 90 degrees.
  • Black zinc die cast key locking/padlocking handle.
  • 3-point latching mechanism.
  • Seams continuously welded and ground smooth.
  • Pour in place oil & water resistant gasket
  • Interior print pocket.
  • Optional back and side panels are mounted on collar studs.
  • Removable eyebolts.
  • Ground stud on door.
