112673
Alt: C-M23F19-19XDIFPU05,0-M23M19-112673
$523.95

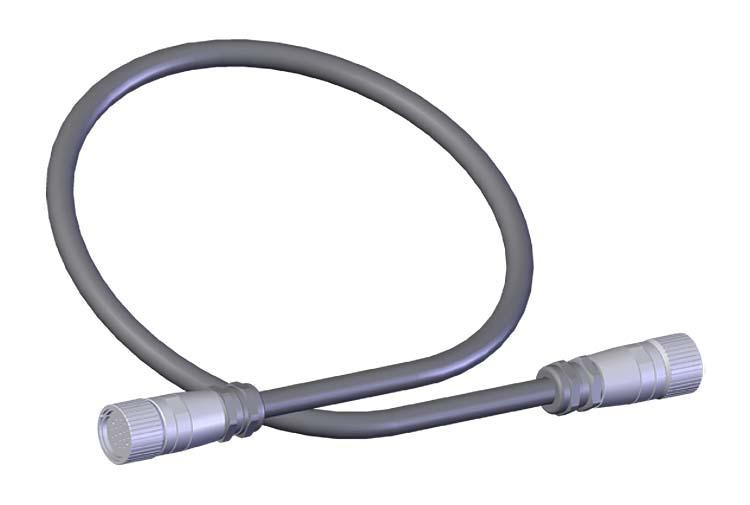

Connecting Cable, C-M23F19-19XDIFPU05, 0-M23M19-112673
- Weight:
- 2.73 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Rated Voltage: 150 V
- Test Voltage: 1.5 kV
- Cable Ambient Temperature (dynamic): -20 - +80 °C
- Cable Ambient Temperature (static): -20 - +80 °C
- Cable Diameter: Approx. 10.4 mm
- Cable Length: 5 m
- Cable Type: Straight
- Conductor Cross-Section: 16x 0.5 mm² + 3x 1 mm²
- Conductor Identification: Color code
- Drag Chain suitability: yes
- Dynamic bending radius: 10 x cable diameter
- Fire Behavior: Flame retardant according to VDE 0472 804
- Material: Sheath: PUR, Conductor insulation: PVC, Conductor: EL-Cu flexible wire, bare, super fine strands
- Number of Conductors: 19
- Sheath Color: Black
Connection 1
- Cable Outlet: Straight
- Connection: Plug connector M23
- Connection Type: Female plug
- Degree of Protection: IP65/IP67
- Connection: CuZn Nickel-plated
- Number of Pins: 19
- Plug Lock: Screw connection
Connection 2
- Cable Outlet: Straight
- Connection: Plug connector M23
- Connection Type: Male plug
- Degree of Protection: IP65/IP67
- Insertion Cycles: 50
