$135.25
CS-DF30
$166.60
Color Sensor, Limited Reflection, 33mm Fiber Optic Cable, Long Range, Fiber Cutter
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Color Sensor, Limited Reflection, 33mm Fiber Optic Cable, Long Range, Fiber Cutter
Specifications
Connection
w/Cable
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
See Spec or N/A
Type of Photoelectric
Fiber Optic
All - Specific Ratings
IP54
Series
See Specs
Size
See Spec
Warranty
1 Year
Weight
.25
Features Include:
- Detection Distance: 33mm (28~38mm)
- Fiber Length: 2m (free-cutting)
- Spot Diameter: ø5mm max.
- Allowable Bending Radius: R 25 mm min.
- Protective Structure: IP54 (optical part waterproofed)
- Ambient Light: Illumination on light receiving surface: 5,000 lx max. for incandescent lamp, 10,000 max. for sunlight
- Ambient Temperature: –25 - +55 °C (non-freezing)
- Vibration: 10-55 Hz / 1.5 mm amplitude / 2 hours each in 3 direction
Fiber:
- Core Diameter: ø1.5 (receiver/transmitter)
- Polyethylene cladding: ø2.2
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$109.10
$114.39
Pizzato
CS MP202M0
Programmable Multifunction Safety Module, 16 Digital Inputs Type I, 4 Test Signals Type T, 4PNP Safety Outputs Type OS, 4 Signaling Outputs Type O, USB Port, 45mm Wide, for Safety Applications up to SIL CL 3/PL e, Category 4, GEMNIS Series
$875.28
Takex
CS-D3
Color Sensor, Amplifier, Color Identification, NPN, RGB LEDs, Fiber Optic Cable, 13mm Detection
$377.40
$145.35
Takex

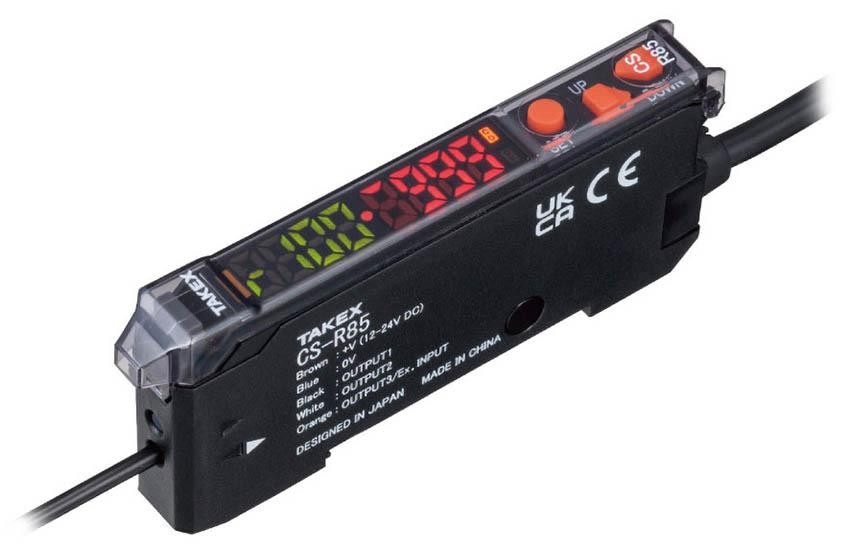

CS-R85
