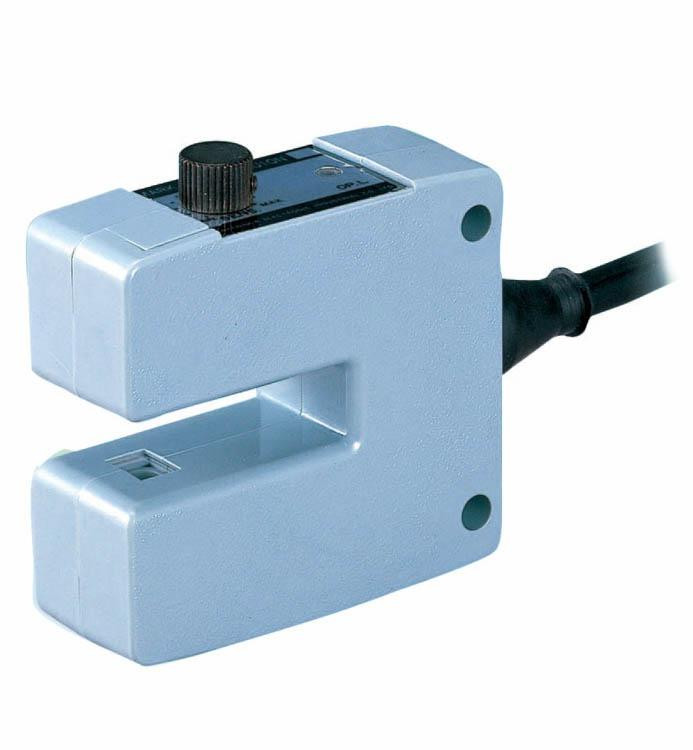

MU10N

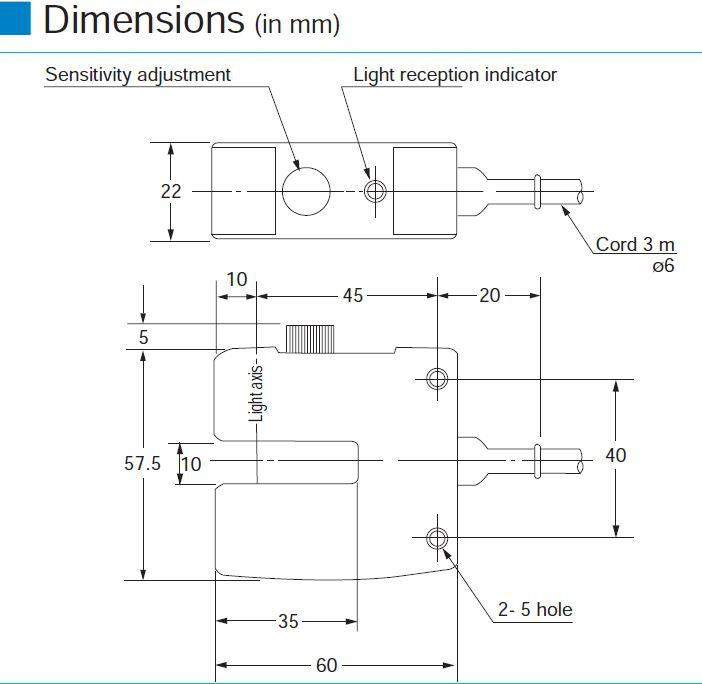

Features Include:

• Detection Method: U-shaped through beam
• Detection Distance: 10mm fixed
• (Between Transmitter and Receiver): 12 - 24 VDC ¬¨¬®¬¨¬±10% Ripple: 10 % or less.
• Current Consumption: 25mA or less
• Power Supply: 35 mA or less.
• Power Consumption: Transmitter/Receiver 2 W or less
• Operation Mode: Light ON/Dark ON 2 outputs (2 output leads)
• Operating Angle: 5% (at receiver)
• Response Time: Green LED (570nm)
• Light source: Provided
• Sensitivity Adjustment: Light reception indicator (red LED)
• Indicator: Polycarbonate
• Material: Cable type (outer diameter: dia.6mm)
• Volume: Delay time adjustment (at receiver)
• Connection: 0.3 mm2 x 4 cores, 3 m
• Weight: Approx. 220 g

Current Consumption:

• Current output/Voltage output (Rating): Current output: sink current 100 mA (30 VDC) or less
• Voltage output: output impedance 4.7 k‚âà√≠¬¨¬©

Environmental Specifications:

• Ambient Light: 3,000 lx or less
• Ambient Temperature:-10 - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
• Shock: 100 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,500 VAC for 1 minute
• Insulation resistance: 500 VDC, 100 MΩ or higher
