BC15-LDT-C-P

BC15-LDT-C-P

Alt: BC Series

$277.00

Color Mark Sensor, PNP, 15mm Sensing, RGB with 12-Bit Resolution, 1.24W x 6.7L mm Spot Size, IP67

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
All-inclusive color palette - outstanding color matching accuracy!
Description

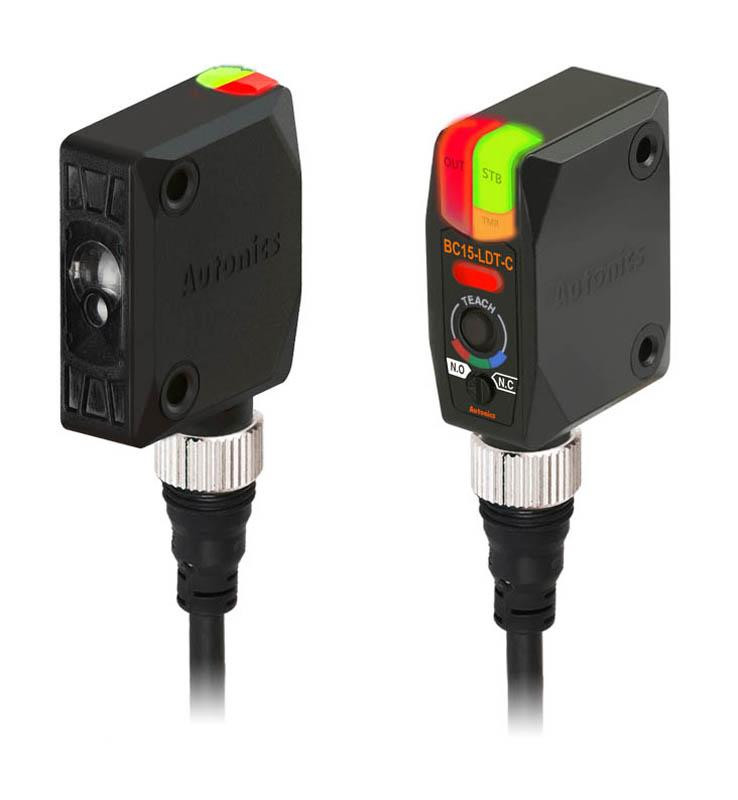

The Autonics BC series is a color mark sensor that gives you outstanding color matching accuracy! These sensors generate RGB LED's with 12-bit resolution processing.

There are two detection modes with 3-step sensitivity adjustment. The spot size (1.24W x 6.7L mm) can detect tiny targets and color marks.

The IP67 rating means you can use them in wet and dusty environments.

Check out Autonics' video all about their BC Series Color Mark Sensors below:

Features Include:

  • Outstanding color matching accuracy
    • RGB light emitting diodes and 12-bit resolution
    • 2 detection modes (color only / color + intensity)
    • 3-step sensitivity adjustment for each mode (fine, normal, rough)
  • External light interference reduction minimizes errors and allows stable detection
  • Check reference color with teaching indicator
  • Operation indicator (red LED), stability indicator (green LED), timer indicator (orange LED)
  • Configure operation functions with external input from wiring

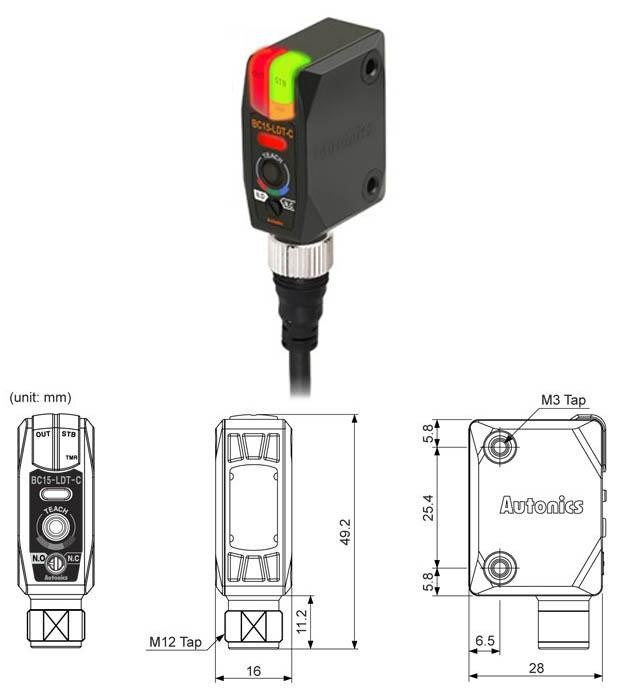

  •  W 1.24 x L 6.7 mm spot size for detection of tiny targets and color marks
  • IP67 protection structure (IEC standard)
