Weintek USA
CMT-SVR-102
Screenless HMI with EasyAccess 2.0 Server-Compatible with iPad, Android or Windows Tablets via WiFi
$446.25
CMT-SVR-200
Alt: Now Hotspot Capable!
$446.25
Screenless HMI, Server-Compatible with iPad, Android, or Windows Tablets via Built-in WiFi, No EasyAccess 2.0
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Looking for a screenless HMI with WiFi?
- Single ethernet port and WiFi (connect to plant network without physical ethernet)
- No need for a router!
- Available with or without EasyAccess Built-IN:
- cMT-SVR-200 (w/out EasyAccess 2.) or cMT-SVR-202 (w/EasyAccess 2.0)
- Great for mobile or remote machines
- Non-WiFi version was the cMT-SVR-10x
Features Include:
- Input Power: 10.5 ~ 28 VDC
- Power Isolation: Built In
- Power Consumption: 1000mA @ 12VDC; 450ma @ 24VDC
- Voltage Resistance: 500VAC (1 min)
- Isolation Resistance: Exceed 50MΩ at 500VDC
- Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

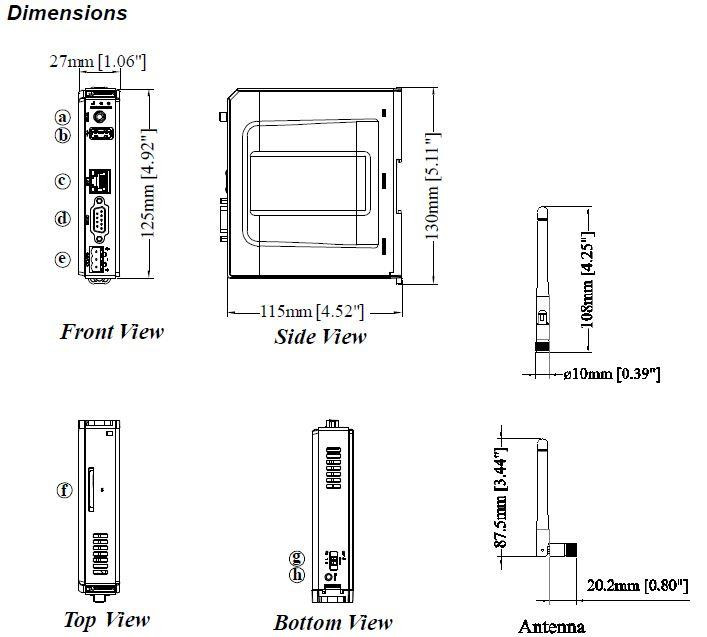

- Dimensions (W x H x D): 27 x 130 x 115 mm
- Operating Temperature: -10° ~ 55°C (14° ~ 131°F)
- Supports Display on cMT Viewer clients
- Compact Design and DIN-rail Mountable
- Fan-less cooling system
- Built-in 256 MB Flash Memory
- SD Card Slot for Expansion of Storage
- One USB Host Port
- One Gigabit Ethernet Ports
- Supports E-Mail
- Supports MPI 187.5K
- Built-in Power Isolator
- Wi-Fi compatible with 802.11 b/g/n
- cMT-SVR 202: Built-in EasyAccess 2.0 License
