$316.80
CLA9S-24A-CD
Alt: This is the Recommended Replacement for CLA9S-24-CD
$284.40

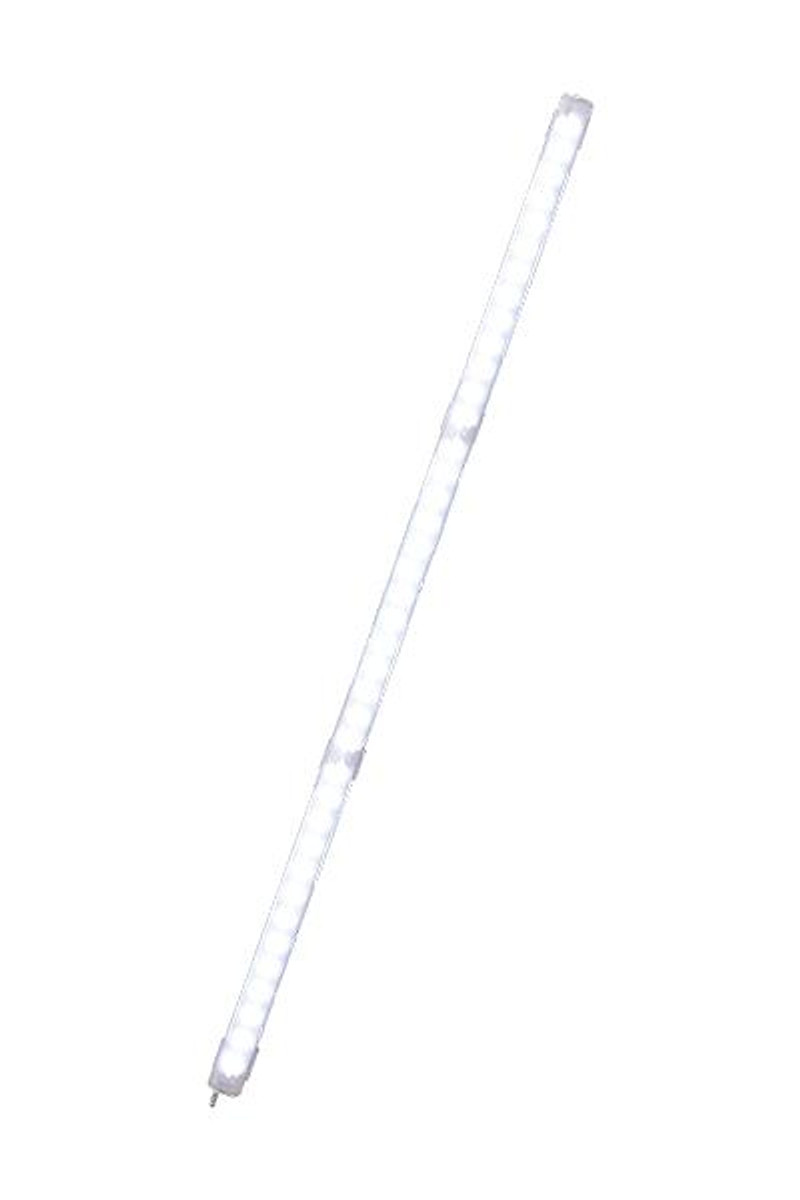

LED Light Bar, 900mm, 24VDC, 17.3W, Daylight, 0.5m Cable
- Weight:
- 1.20 LBS
- Minimum Purchase:
- 1 unit
Description
PATLITE was founded in 1947 and the original name was Sasaki Electric Corporation. The first product developed was a rotating warning light for patrol cars and the name PATLITE was created from 'patrol car' and 'light'.
Today PATLITE is a leading manufacturer of visual and audible signaling devices. Their products include signal towers, audible alarms, LED light bars, warning lights and network products.
Features Include:
- Light Source: High-intensity LED chip, Daylight - Average Service Life (specified when brightness decreases to 70%) : 40,000 hours
- Length of Illuminated Area: 900mm
- Rated Voltage: 24V DC (Polarized)
- Operating Voltage Range: 24V DC ±10%
- Functions: Continuous Only
- Rated Current Consumption (mA±10%): 720
- Rated Power Consumption: 17.3W
- Cable Length: 0.5m / 3.0m
- Operating Temperature Range: -40"C to +60'C (RH 90% or less. no condensation)
- Main Body Material: Polycarbonate Resin (Waterproof Packing/Screw Cap": Silicon)
- Protection Rating: IP66/67 (IEC 60529)169K (DIN 40 050-9) (Cable Terminal not included)
- Insulation Resistance: 5MQ or more with a 500V DC Megohmmeter
Mounting Directions:
- Snap-in screw mounted bracket
- Snap-in magnetic mounted bracket
- Side mounted brackets
- Indoor, any direction
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$207.00
$110.70
$381.60
Patlite
CLA3S-24A-CD

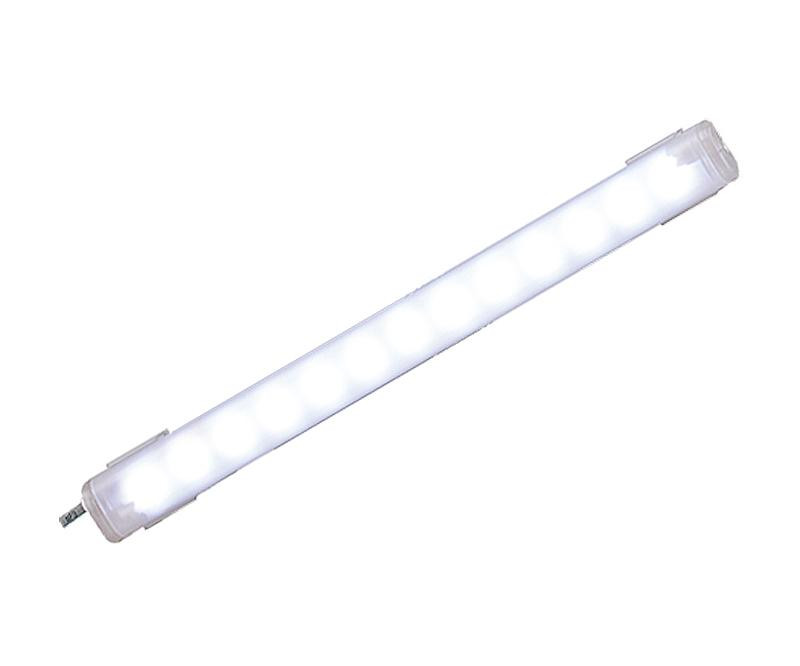

LED Light Bar, 300mm, 24VDC, Daylight White LED, Water and Oil Resistant, 0.5m Cable, IP66/67/69K (Overall Dimensions without Brackets: 324 x 30 x 19.5mm)
