$144.18
CLA6S-24A-CD
Alt: This is the Recommended Replacement for CLA6S-24-CD
$207.00

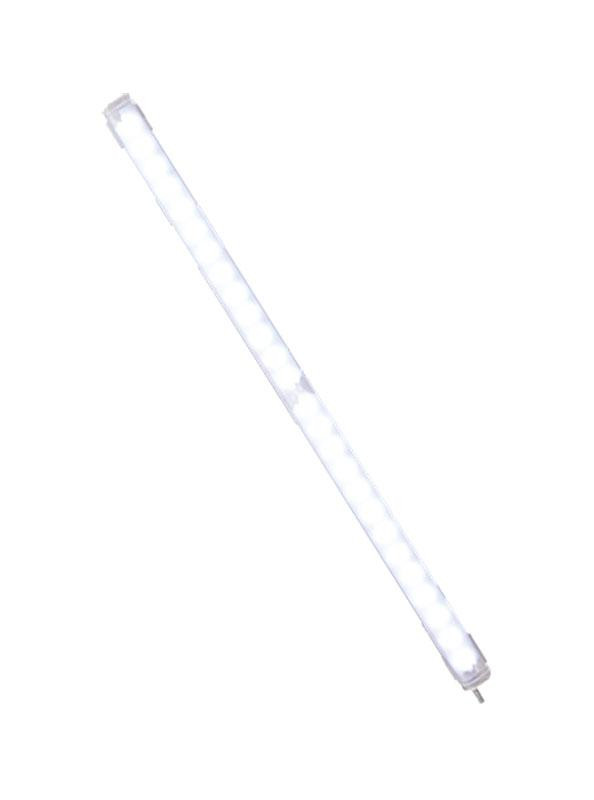

LED Light Bar, 600mm, 24VDC, 11.6W, Daylight, 0.5m Cable
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
PATLITE was founded in 1947 and the original name was Sasaki Electric Corporation. The first product developed was a rotating warning light for patrol cars and the name PATLITE was created from 'patrol car' and 'light'.
Today PATLITE is a leading manufacturer of visual and audible signaling devices. Their products include signal towers, audible alarms, LED light bars, warning lights and network products.
Specifications
Alternate Part Number
This is the Recommended Replacement for CLA6S-24-CD
All - Approvals
CE, RoHS Compliant
Color
Daylight
LED Light Strip Length
600mm
All - Specific Ratings
IP66, IP67, IP69K
Series
CLA Series
All - Voltage
24VDC
Warranty
1 Year
Weight
1
Features Include:
- Light Source: High-intensity LED chip, Daylight - Average Service Life (specified when brightness decreases to 70%) : 40,000 hours
- Length of Illuminated Area: 600mm
- Rated Voltage: 24V DC (Polarized)
- Operating Voltage Range: 24V DC ±10%
- Functions: Continuous Only
- Rated Current Consumption (mA±10%): 480
- Rated Power Consumption: 11.6W
- Cable Length: 0.5m / 3.0m
- Operating Temperature Range: -40"C to +60'C (RH 90% or less. no condensation)
- Main Body Material: Polycarbonate Resin (Waterproof Packing/Screw Cap": Silicon)
- Protection Rating: IP66/67 (IEC 60529)169K (DIN 40 050-9) (Cable Terminal not included)
- Insulation Resistance: 5MQ or more with a 500V DC Megohmmeter
Mounting Directions:
- Snap-in screw mounted bracket
- Snap-in magnetic mounted bracket
- Side mounted brackets
- Indoor, any direction
