CLA2S-24A-CD

CLA2S-24A-CD

Alt: This is the Recommended Replacement for CLA2S-24-CD

$110.70

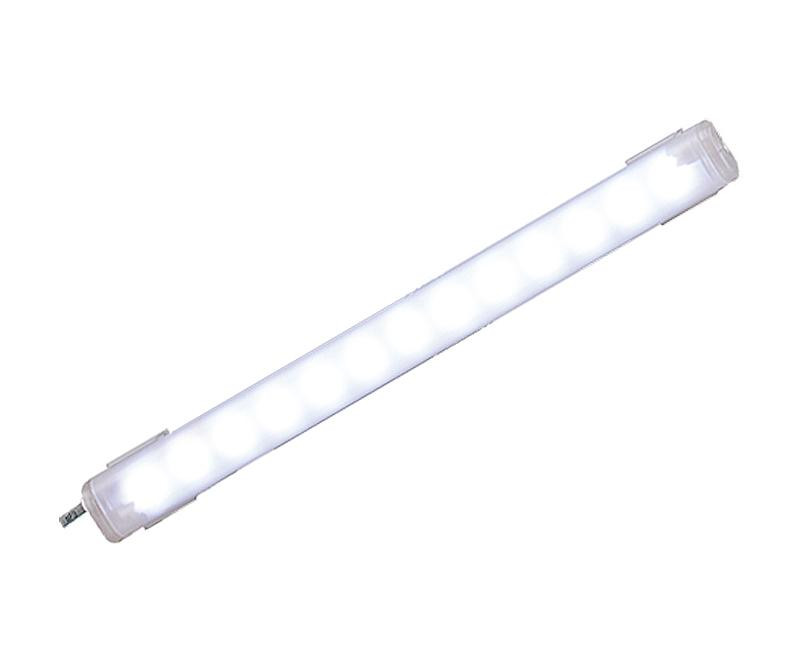

LED Light Bar, 200mm, 24VDC, 5W, Daylight, 0.5m Cable

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
PATLITE was founded in 1947 and the original name was Sasaki Electric Corporation. The first product developed was a rotating warning light for patrol cars and the name PATLITE was created from 'patrol car' and 'light'.

Today PATLITE is a leading manufacturer of visual and audible signaling devices. Their products include signal towers, audible alarms, LED light bars, warning lights and network products.
Specifications
Alternate Part Number This is the Recommended Replacement for CLA2S-24-CD
All - Approvals CE, RoHS Compliant
Color Daylight
LED Light Strip Length 200-250mm
All - Specific Ratings IP66, IP67, IP69K
Series CLA Series
All - Voltage 24VDC
Warranty 1 Year
Weight 0.5

Features Include:

  • Light Source: High-intensity LED chip, Daylight - Average Service Life (specified when brightness decreases to 70%) : 40,000 hours
  • Length of Illuminated Area: 200mm
  • Rated Voltage: 24V DC (Polarized)
  • Operating Voltage Range: 24V DC ±10%
  • Functions: Continuous Only
  • Rated Current Consumption (mA±10%): 208
  • Rated Power Consumption: 5.0W
  • Cable Length: 0.5m / 3.0m
  • Operating Temperature Range: -40"C to +60'C (RH 90% or less. no condensation)
  • Main Body Material: Polycarbonate Resin (Waterproof Packing/Screw Cap": Silicon)
  • Protection Rating: IP66/67 (IEC 60529)169K (DIN 40 050-9) (Cable Terminal not included)
  • Insulation Resistance: 5MQ or more with a 500V DC Megohmmeter

Mounting Directions:

  • Snap-in screw mounted bracket
  • Snap-in magnetic mounted bracket
  • Side mounted brackets
  • Indoor, any direction
