$105.00
CLA2S-24A-CD-30
Alt: This is the Recommended Replacement for CLA2S-24-CD-30
$137.01

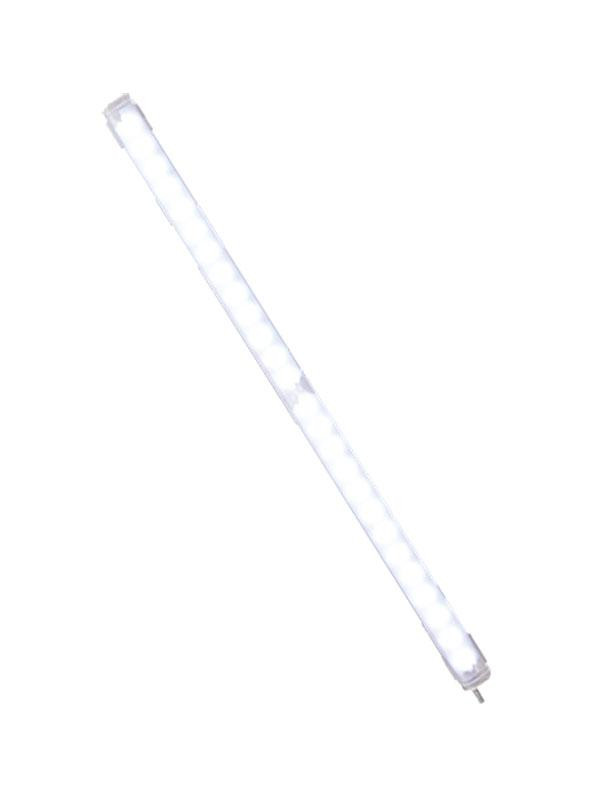

LED Light Bar, 200mm, 24VDC, 5W, Daylight, 3m Cable
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
PATLITE was founded in 1947 and the original name was Sasaki Electric Corporation. The first product developed was a rotating warning light for patrol cars and the name PATLITE was created from 'patrol car' and 'light'.
Today PATLITE is a leading manufacturer of visual and audible signaling devices. Their products include signal towers, audible alarms, LED light bars, warning lights and network products.
Features Include:
- Light Source: High-intensity LED chip, Daylight - Average Service Life (specified when brightness decreases to 70%) : 40,000 hours
- Length of Illuminated Area: 200mm
- Rated Voltage: 24V DC (Polarized)
- Operating Voltage Range: 24V DC ±10%
- Functions: Continuous Only
- Rated Current Consumption (mA±10%): 208
- Rated Power Consumption: 5.0W
- Cable Length: 0.5m / 3.0m
- Operating Temperature Range: -40"C to +60'C (RH 90% or less. no condensation)
- Main Body Material: Polycarbonate Resin (Waterproof Packing/Screw Cap": Silicon)
- Protection Rating: IP66/67 (IEC 60529)169K (DIN 40 050-9) (Cable Terminal not included)
- Insulation Resistance: 5MQ or more with a 500V DC Megohmmeter
Mounting Directions:
- Snap-in screw mounted bracket
- Snap-in magnetic mounted bracket
- Side mounted brackets
- Indoor, any direction
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Patlite
CLA12S-24A-CD-30
Light Bar, 1200mm, 24VDC, LED, IP66, IP67, IP69K, Polycarbonate Body, Daylight White w/3m Cable
$394.41
$118.24
$300.88
Patlite

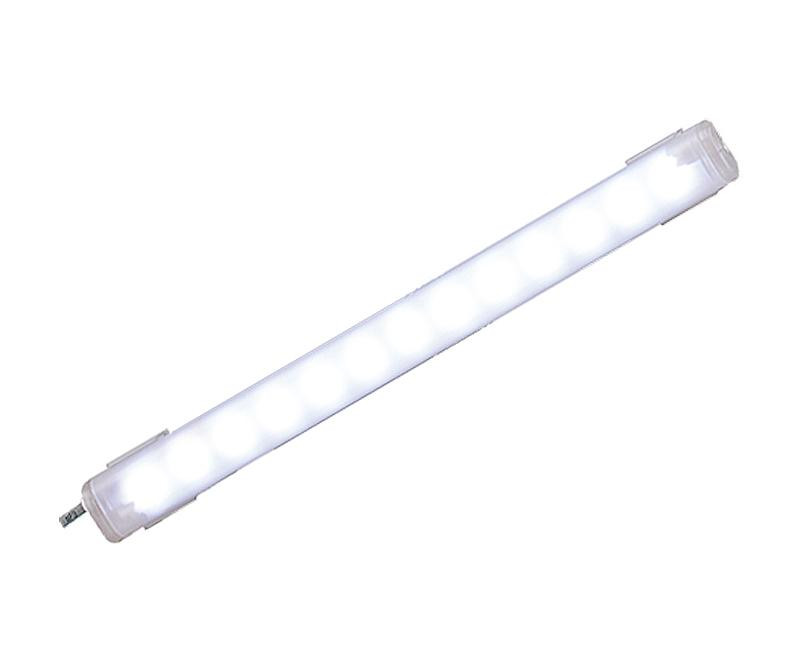

CLA3S-24A-CD-30
