2Z10UM
Alt: V-EA (Z-Trip) Series
$66.41

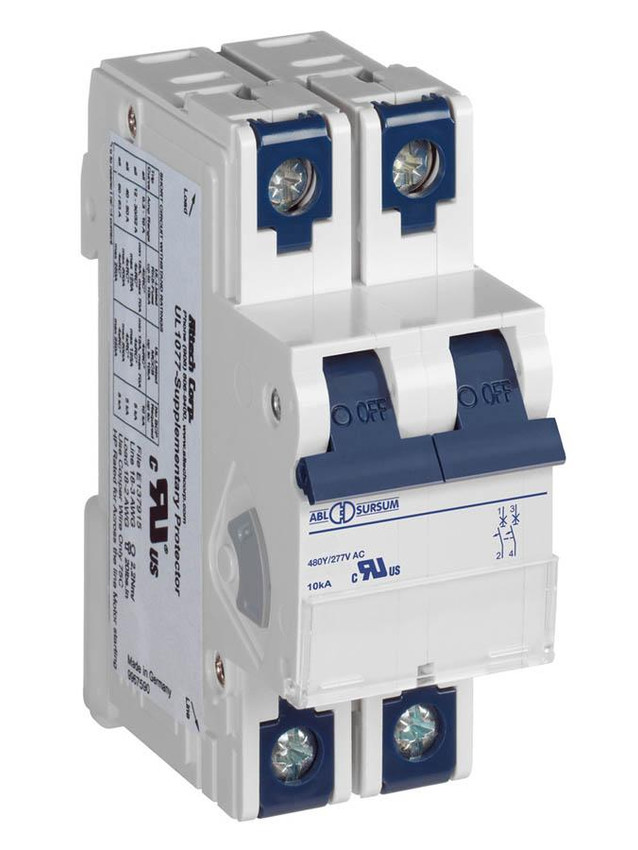

Circuit Breaker, UL508, 2-Pole, Z-Curve, 10 Amp
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Altech Corporation was founded in 1984 and is a master distributor for a complete line of industrial automation components. Altech has been a long-time partner of ours and consistently brings high quality and unique products to the market.
They are located in Flemington, New Jersey and are ISO 9001:2015 certified.
Features Include:
- Current/Voltage Rating: 0.3-60A / 480Y/277V AC, 50/60Hz
- Short Circuit Withstand: 0.3-60A (RC): 10kA with UL-listed RK5 back-up fuse or MCCB
- Protection Rating: IP20
- DIN Rail Mounted
- 17.5mm width per pole
- Thermal Magnetic
Applications Include:
- AC Motor Starting, Across the Line
- AC General Use
- AC Resistance
- AC Discharge Lamps (Ballast)
- AC Incandescent Lamps (Tungsten)
