0627050663
Alt: 627050663, BK63HU 2P D10A 10kA 480Y/277VAC UL489, This Item Replaced 0627047563
$38.73

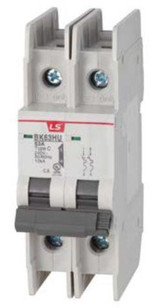

MCB, UL489, 2-Pole, D-Curve, 10 Amp, 10kA, 480Y/277VAC, Thermal Magnetic Miniature Circuit Breaker
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
LS Electric is a global manufacturer of electrical power distribution equipment that includes circuit breakers and motor starters as well as variable frequency drives and HMIs.
LS Electric America, formerly LG Industrial Systems and LSIS, is a subsidiary of LS Electric headquartered in South Korea.
Specifications
Alternate Part Number
627050663, BK63HU 2P D10A 10kA 480Y/277VAC UL489, This Item Replaced 0627047563
Amp Rating
10 Amp
Circuit Breaker Type
UL489
Poles
2 Pole
Series
BK Series
Short Circuit Capacity
10kA
Trip Curve
D Curve
All - Voltage
480Y/277VAC
Warranty
2-1/2 Years
Weight
1
Quantity
9
Features Include:
- Rated Frequency: 50/60 Hz
- Reference Temperature: 40°C
- Trip Type: Thermal Magnetic
- Type of Terminals: Terminal with stirrup(Indirect pressure)
- Tightening Torque: 2Nm (17.5 lbf-in)
- Installation: Mounting on 35mm din rail
