02050004UL
Alt: 2050004UL, UTE100E FTU 30A 3P LL UL
$281.34

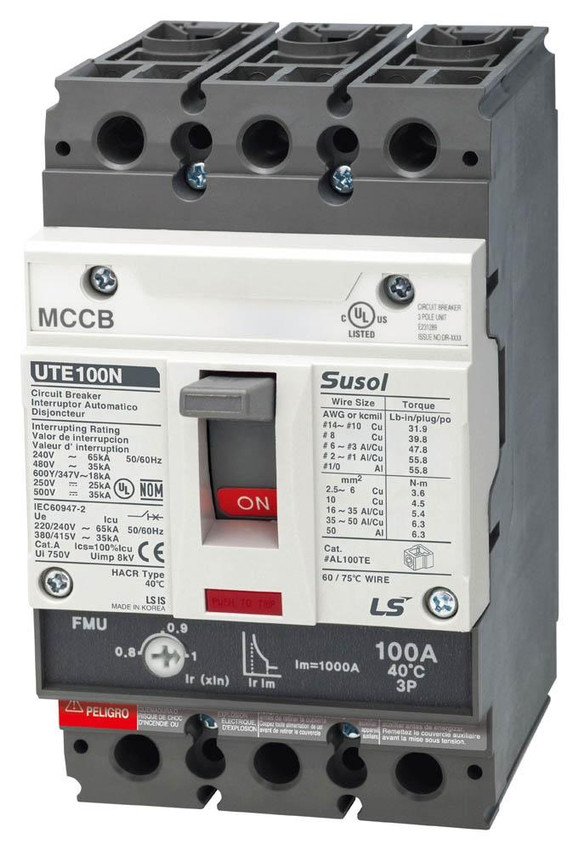

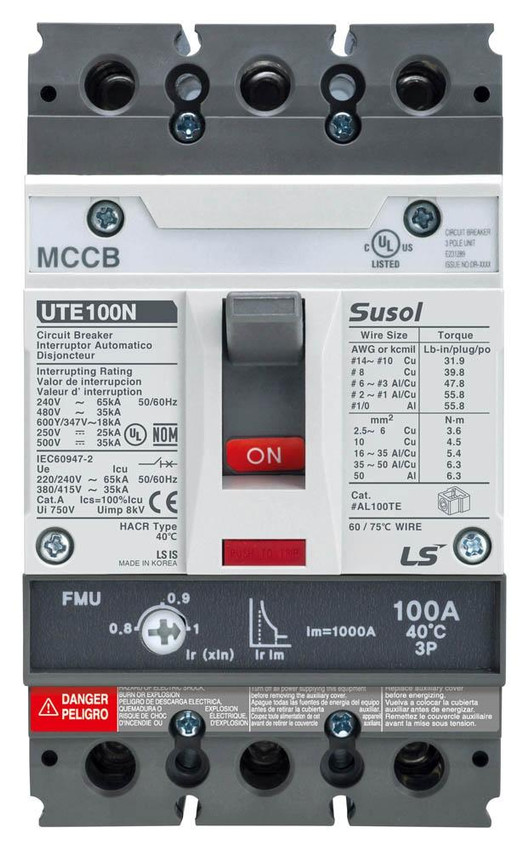

MCCB, 3-Pole, 30 Amp, 25kA@480VAC, Fixed Thermal/Magnetic, Lugs Line/Load Side, 5.12 x 2.99 x 3.44" (HWD), Susol UL MCCB UTE100 Series, UL Listed, Molded Case Circuit Breaker
- Weight:
- 2.65 LBS
- Minimum Purchase:
- 1 unit
Description
Our LS Electric molded case circuit breakers (MCCB) are designed to protect low voltage electrical systems from overloads and short circuits.
The Susol series (UTS/UTE) is a compact UL489 listed MCCB with ratings available from 15 to 1200 amps in seven frame sizes.

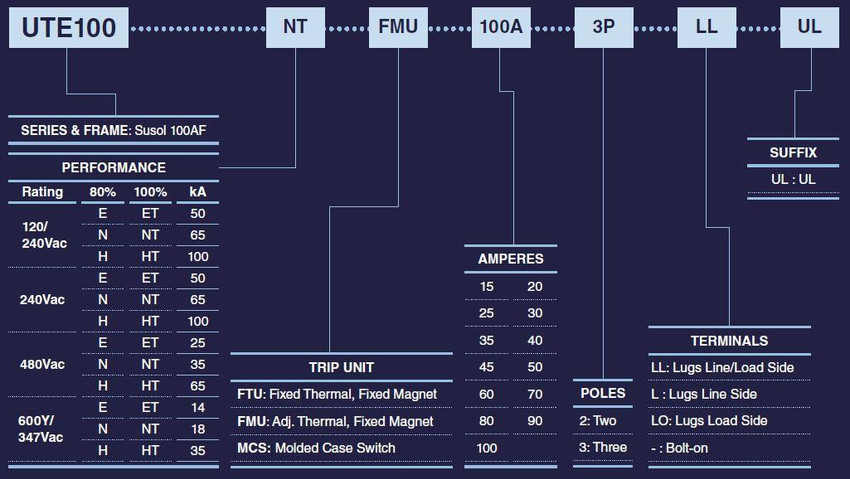

We currently show the FTU (fixed thermal and magnetic units) and FMU (adjustable thermal, fixed magnetic units) series, 3 pole and 80% rating online. Please contact us if you are looking for an MCCB not currently shown online (ATU - adjustable thermal and magnetic unit, MCS - molded case switch, MCP - motor circuit protector).
- UTE100: 15 to 100 amp, interrupting capacity 25kA(E), 35kA(N) at 480VAC
- UTS150: 40~150 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
- UTS250: 150~250 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
- UTS400: 250~400 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
- UTS600 500~600 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
- UTS800: 400~800 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
- UTS1200: 800~1200 amp, interrupting capacity: 35kA(N), 65kA(H), 50kA(P), 100kA(L) at 480Vac
Marshall Wolf Automation is your authorized LSIS distributor (formerly part of LG Industrial Systems).
Series Features Include:
- UTE100 breaker is HACR rated
- SWD switch duty rating (applied only to 15 and 20A /347Vac or less)
- HID high intensity discharge lighting rating (15~50A /480Vac or less)
- Insulation Voltage: 750 VAC
- Impulse Withstand Voltage, Uimp: 8kVac
- 2-Pole Dimensions (W x H x D): 2.01 in (51mm) 5.12in (130mm) 3.44in (87.5mm)
- 3-Pole Dimensions (W x H x D): 2.99 in (76mm) 5.12in (130mm) 3.44in (87.5mm)
Interrupting Capacity (kA rms) AC 50/60Hz:
- 120/240V: 50kVA
- 240V: 50kVA
- 480V: 25 kVA
- 600Y 347V: 14 kVA
Interrupting Capacity (kA) DC:
- 250V dc-2P: 16kVA
- 500V dc-3P: 25kVA
Technical Information:
Learn more about Circuit Breakers Here!
