Available Now! 02090001UL
Available Now! (1 in stock)
LS Electric

02090001UL

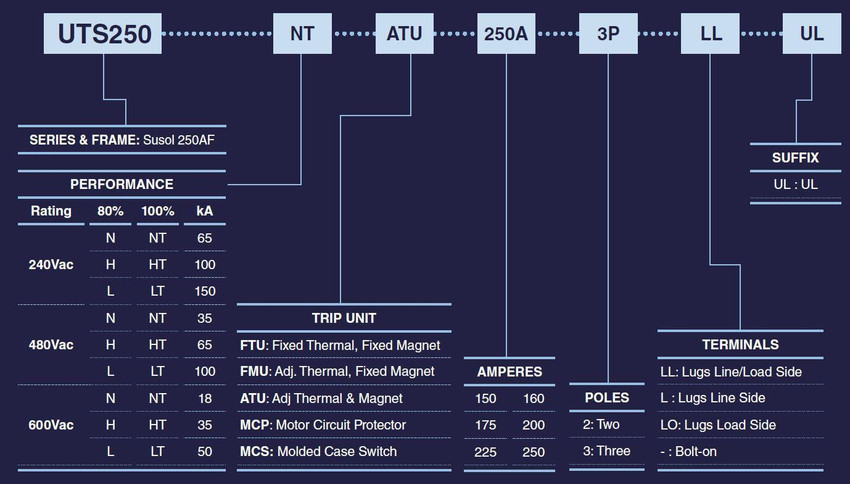

Alt: 2090001UL, UTS250N FTU 150A 3P LL UL

$601.87

MCCB, 3 Pole, 150 Amp (150A), 80%, 65kA, Fixed Thermal/Magnetic, Lugs Line/Load Side, UL, Molded Case Circuit Breaker

Weight:
4.19 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Our LS Electric molded case circuit breakers (MCCB) are designed to protect low voltage electrical systems from overloads and short circuits.

The Susol series (UTS/UTE) is a compact UL489 listed MCCB with ratings available from 15 to 1200 amps in seven frame sizes.

We currently show the FTU (fixed thermal and magnetic units) and FMU (adjustable thermal, fixed magnetic units) series, 3 pole and 80% rating online. Please contact us if you are looking for an MCCB not currently shown online (ATU - adjustable thermal and magnetic unit, MCS - molded case switch, MCP - motor circuit protector).

  • UTE100: 15 to 100 amp, interrupting capacity 25kA(E), 35kA(N) at 480VAC
  • UTS150:  40~150 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
  • UTS250:  150~250 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
  • UTS400:  250~400 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
  • UTS600  500~600 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
  • UTS800: 400~800 amp, interrupting capacity: 35kA(N), 65kA(H), 100kA(L) at 480Vac
  • UTS1200: 800~1200 amp, interrupting capacity: 35kA(N), 65kA(H), 50kA(P), 100kA(L) at 480Vac

Marshall Wolf Automation is your authorized LSIS distributor (formerly part of LG Industrial Systems).

Series Features Include:

  • Simplified product range
    • AF: 100AF, 150AF, 250AF, 400AF, 600AF, 800AF, 1200AF
    • Ampere Range: 15A ~ 1200A
  • High performance
  • Icu: Max 100kA @480VAC
  • Various accessories
  • Extended rotary handle
  • Locking devices
  • Various trip units
    • FTU: Fixed thermal & Magnetic unit
    • FMU: Adjustable thermal, Fixed magnetic unit
    • ATU: Adjustable thermal & magnetic unit
    • MCS: Molded Case Switch
    • MCP: Motor Circuit Protector
  • Ultimate breaking capacity (kA rms)
  • World class standards with UL489
  • Electrical auxiliaries
  • Flange handle
  • Variable Depth Mechanism
Accessories
!
✓
