Available Now! 0628040963
Available Now! (2 in stock)
LS Electric

0628040963

Alt: 628040963, BK63HU 3P D20A 10kA 480Y/277VAC UL489

$63.94

MCB, UL489, 3-Pole, D-Curve, 20 Amp, 10kA, 480Y/277VAC, Thermal Magnetic Miniature Circuit Breaker

Weight:
1.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

LS (formerly known as LG Industrial Solutions) UL489 circuit breakers are used for branch circuit protection.

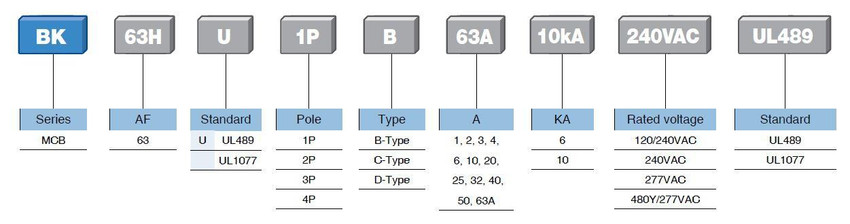

The BK63HU series is available in 1, 2 or 3 pole, B, C or D trip curve and from 1 to 63 amp. These breakers have a 10kA breaking capacity.

Features Include:

  • Rated Frequency: 50/60 Hz
  • Reference Temperature: 40°C
  • Trip Type: Thermal Magnetic
  • Type of Terminals: Terminal with stirrup(Indirect pressure)
  • Tightening Torque: 2Nm (17.5 lbf-in)
  • Installation: Mounting on 35mm din rail
  • Rated Short Current: 10kA

Learn more about Circuit Breakers Here!
