$16.21
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(6 in stock)
0628033963
Alt: 628033963, BK63H 3P D20A 6kA 480Y/277VAC UL1077
$26.27
MCB, UL1077, 3-Pole, D-Curve, 20 Amp, 6kA, 480Y/277VAC, Thermal Magnetic Miniature Circuit Breaker
- Weight:
- 1.10 LBS
- Minimum Purchase:
- 1 unit
Description
LSIS (formerly LG Industrial Solutions) UL1077 miniature circuit breakers are suitable for overload and short circuit protection.

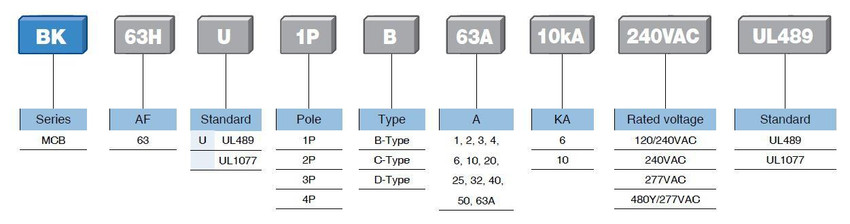

The BK63H series (UL1077) is available in 1, 2, 3 or 4 poles, in B, C or D trip curves and from 1 to 63 amp.
The UL1077 series from LS does have a 12 pole minimum order.
Features Include:
- Rated Frequency: 50/60 Hz
- Reference Temperature: 40°C
- Trip Type: Thermal Magnetic
- Type of Terminals: Terminal with stirrup(Indirect pressure)
- Tightening Torque: 2Nm (17.5 lbf-in)
- Installation: Mounting on 35mm din rail
Need More Information?
Learn more about Circuit Breakers Here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$22.70
$26.77
$26.77
$26.77
$13.78
