Available Now! 0628047263
Available Now! (2 in stock)
LS Electric

0628047263

Alt: 628047263, BK63HU 3P D15A 10kA 480Y/277VAC UL489, (Suggested Replacement for 0628046263)

$63.94

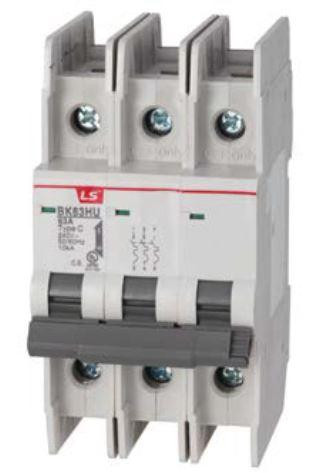

MCB, UL489, 3-Pole, D-Curve, 15 Amp, 10kA, 480Y/277VAC, Thermal Magnetic Miniature Circuit Breaker, (Suggested Replacement for 0628046263, BK63HU 3P D15A 10kA 240VAC UL489)

Weight:
1.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

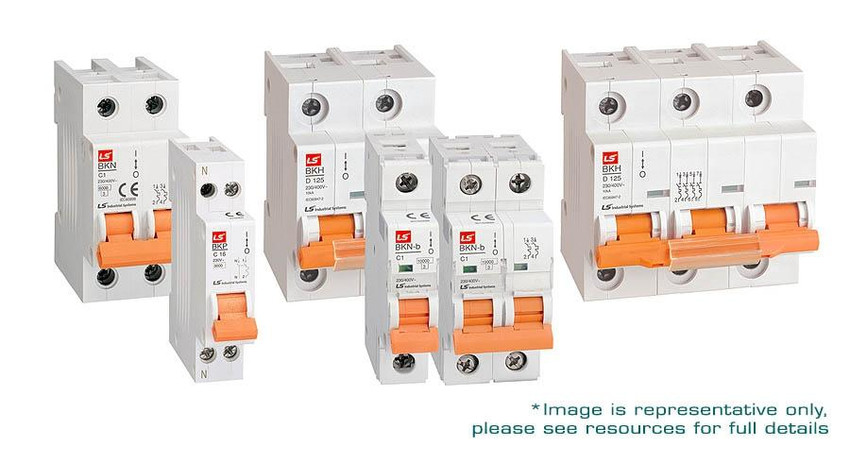

LS (formerly known as LG Industrial Solutions) UL489 circuit breakers are used for branch circuit protection.

The BK63HU series is available in 1, 2 or 3 pole, B, C or D trip curve and from 1 to 63 amp. These breakers have a 10kA breaking capacity.

Features Include:

  • Rated Frequency: 50/60 Hz
  • Reference Temperature: 40°C
  • Trip Type: Thermal Magnetic
  • Type of Terminals: Terminal with stirrup(Indirect pressure)
  • Tightening Torque: 2Nm (17.5 lbf-in)
  • Installation: Mounting on 35mm din rail
  • Rated Short Current: 10kA

Learn more about Circuit Breakers Here!
