$16.21
Product image is representative only, please verify specifications.
0628032363
Alt: 628032363, BK63H 3P C6A 6kA 480Y/277VAC UL1077
$26.27
MCB, UL1077, 3-Pole, C-Curve, 6 Amp, 6kA, 480Y/277VAC, Thermal Magnetic Miniature Circuit Breaker
- Weight:
- 1.10 LBS
- Minimum Purchase:
- 1 unit
Description
LSIS (formerly LG Industrial Solutions) UL1077 miniature circuit breakers are suitable for overload and short circuit protection.

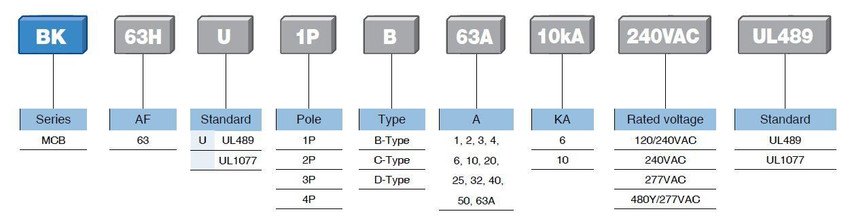

The BK63H series (UL1077) is available in 1, 2, 3 or 4 poles, in B, C or D trip curves and from 1 to 63 amp.
The UL1077 series from LS does have a 12 pole minimum order.
Features Include:
- Rated Frequency: 50/60 Hz
- Reference Temperature: 40°C
- Trip Type: Thermal Magnetic
- Type of Terminals: Terminal with stirrup(Indirect pressure)
- Tightening Torque: 2Nm (17.5 lbf-in)
- Installation: Mounting on 35mm din rail
