MA40UM

MA40UM

Alt: MA Series

$149.26

Circuit Breaker, 3 Phase, Adjustable Trip, 40A, Handles High Inrush Loads of 3 Phase Devices

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Due to long lead times from this manufacturer we recommended looking at similar options that are in stock. Search circuit breakers now!
Description

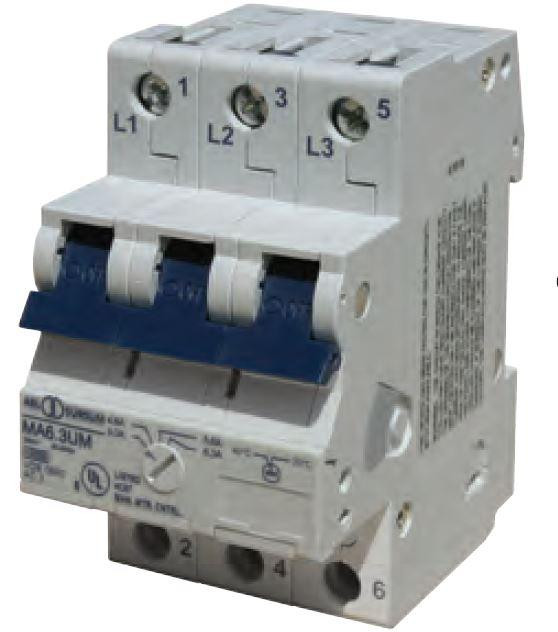

The Altech MA Series was designed to handle the high inrush loads of 3 phase transformers, power supplies and motors.

This three phase adjustable trip miniature circuit breaker/manual motor controller protects wiring and equipment from damage caused by the three major classes of over-current. They also reduce the number of nuisance trips in high starting and inrush current circuits.

The MA series are IEC devices with excellent ratings under a UL listing at 480Y/277V and at 500V under international standards.

Features Include:

  • AIC (Interrupt Capacity): 0.16A-2.5A: 42kA; 4.0A-16A: 14kA; 20A-40A: 10kA
  • Typical Life: 6000 on/off operations with 2xRC
  • Calibration Temperature: 25°C, +0°, -5° (77°F, +0° -9°)

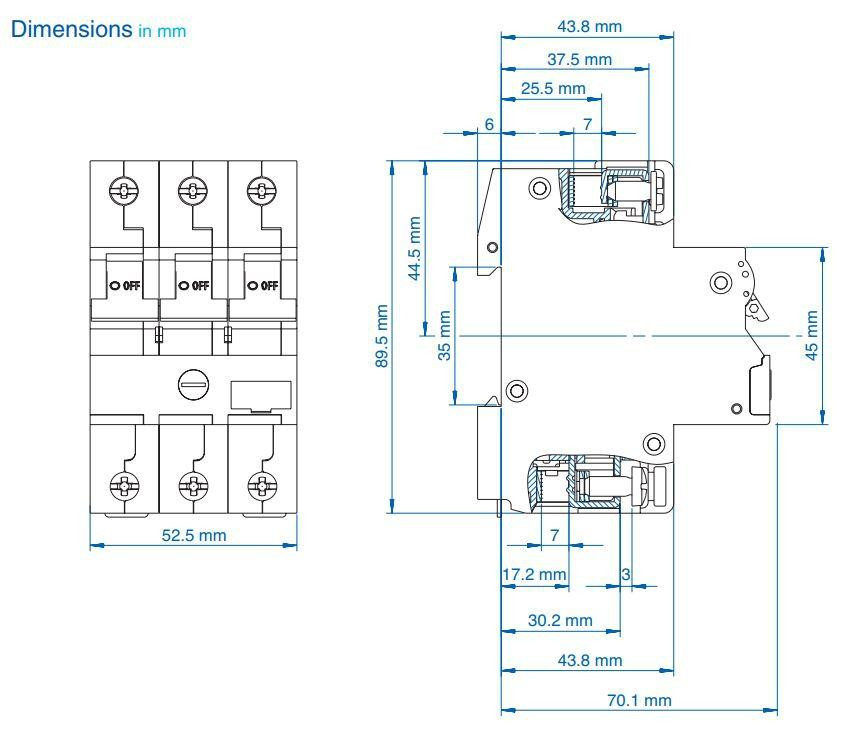

  • Standard Pack and Weight: 1/450g (1.0 lb.)
  • Terminal Size Acceptability: Top/Bottom: 18-3 AWG
  • Terminal Torque (min/max): 2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
  • FLA Dial Adjustment Markings: 10/12/14/16
  • Group Short Circuit Rating at 480VAC (and BCP size): 14kARMS symmetrical (max. 350A MCCB or RK5)
