0627050363

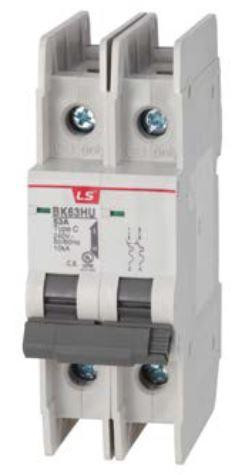

Alt: 627050363, BK63HU 2P D3A 10kA 480Y/277VAC UL489
$38.73
MCB, UL489, 2-Pole, D-Curve, 3 Amp, 10kA, 480Y/277VAC, Thermal Magnetic Miniature Circuit Breaker
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
LS (formerly known as LG Industrial Solutions) UL489 circuit breakers are used for branch circuit protection.

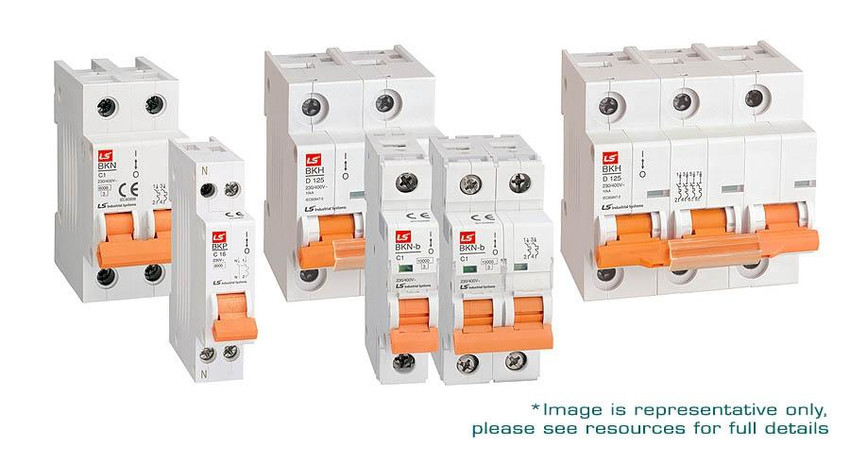

The BK63HU series is available in 1, 2 or 3 pole, B, C or D trip curve and from 1 to 63 amp. These breakers have a 10kA breaking capacity.
Features Include:
- Rated Frequency: 50/60 Hz
- Reference Temperature: 40°C
- Trip Type: Thermal Magnetic
- Type of Terminals: Terminal with stirrup(Indirect pressure)
- Tightening Torque: 2Nm (17.5 lbf-in)
- Installation: Mounting on 35mm din rail
