1D5UL
$25.65

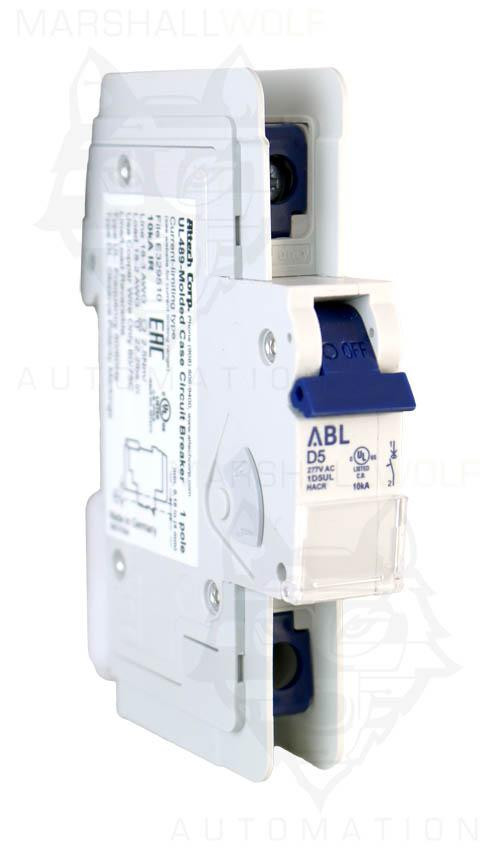

Circuit Breaker, 1-Pole, D-Curve, 5 Amp, UL489, 10kA, Branch Circuit Protection, Molded Case
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
These UL Series circuit breakers are manufactured by ABL Sursum for Altech.
These UL489 miniature molded case circuit breakers are available in AC (UL suffix) or DC (DL suffix) models.

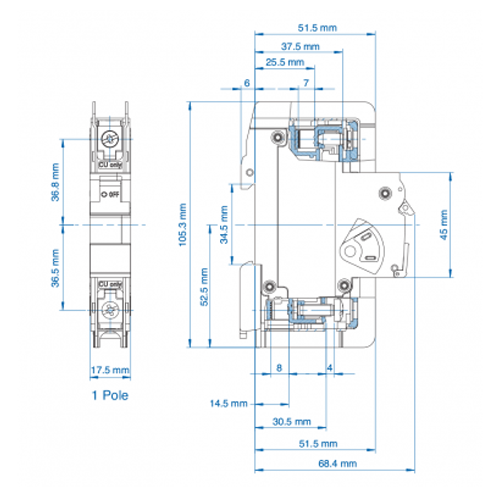

These circuit breakers are DIN rail mounted, 17.5mm width and have 10kA short capacity.
Marshall Wolf Automation is your authorized Altech distributor!
Specifications
Amp Rating
5 Amp
Circuit Breaker Type
Molded Case (MCCB)
Poles
1 Pole
Series
UL Series (D-Trip)
Short Circuit Capacity
10kA
Trip Curve
D Curve
All - Voltage
277VAC
Warranty
1 Year
Weight
0.5
Series Features Include:
- AC Current/Voltage Rating: 0.3 - 63A/ 240V AC, 0.3-32A/ 480Y/277V AC*
- DC Current/Voltage Rating: 0.3 - 63A/ 250V DC
- Terminal Torque: 2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
- Available in AC and DC models
- DIN Rail Mounted
- 17.5mm width
- Thermal Magnetic
- Current Limiting (UL tested)
- 10kA Short Circuit Interrupting Capacity
- HACR Type 40°C
- Line/Load reversible
Downloads
- Altech UL/DL Series - UL489 Miniature Circuit Breaker 1 Pole D-Trip AC/DC Datasheet
- Altech UL/DL Series - UL489 Miniature Circuit Breaker Catalog
- Altech UL Series - UL489 Miniature Circuit Breaker Wiring Instructions
- Altech Circuit Breaker Application Examples
- Altech 14kA Optional Interrupt Capacity Flyer
