1D03UL
$25.65

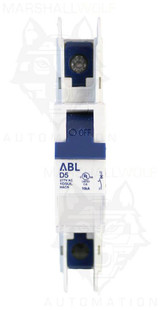

Circuit breaker, 1-Pole, D-Curve, 0.3A
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Altech Corporation was founded in 1984 and is a master distributor for a complete line of industrial automation components. Altech has been a long-time partner of ours and consistently brings high quality and unique products to the market.
They are located in Flemington, New Jersey and are ISO 9001:2015 certified.
Specifications
Amp Rating
0.3 Amp
Circuit Breaker Type
UL489
Poles
1 Pole
Series
UL Series (D-Trip)
Short Circuit Capacity
10kA
Trip Curve
D Curve
All - Voltage
277VAC
Warranty
1 Year
Weight
0.5
Series Features Include:
- Voltage/Current Rating: 240V, 480Y/277V AC, 50/60Hz, 125VDC (1 pole); 250VDC (2pole)
- Short Circuit Interrupt Capacity: 10 kA
- Protection Rating: IP20
- Available in AC and DC models
- DIN Rail Mounted
- 17.5mm width
- Thermal Magnetic
- Positive Trip indicator (Green - off/tripped, Red - on)
- HACR Type 40°C
- Line/Load reversible
Downloads
- Altech UL/DL Series - UL489 Miniature Circuit Breaker 1 Pole D-Trip AC Datasheet
- Altech UL/DL Series - UL489 Miniature Circuit Breaker Catalog
- Altech UL Series - UL489 Miniature Circuit Breaker Wiring Instructions
- Altech Circuit Breaker Application Examples
- Altech 14kA Optional Interrupt Capacity Flyer
