42032605003
Alt: 420 3260 5003, EB 260 WT
$32,171.25

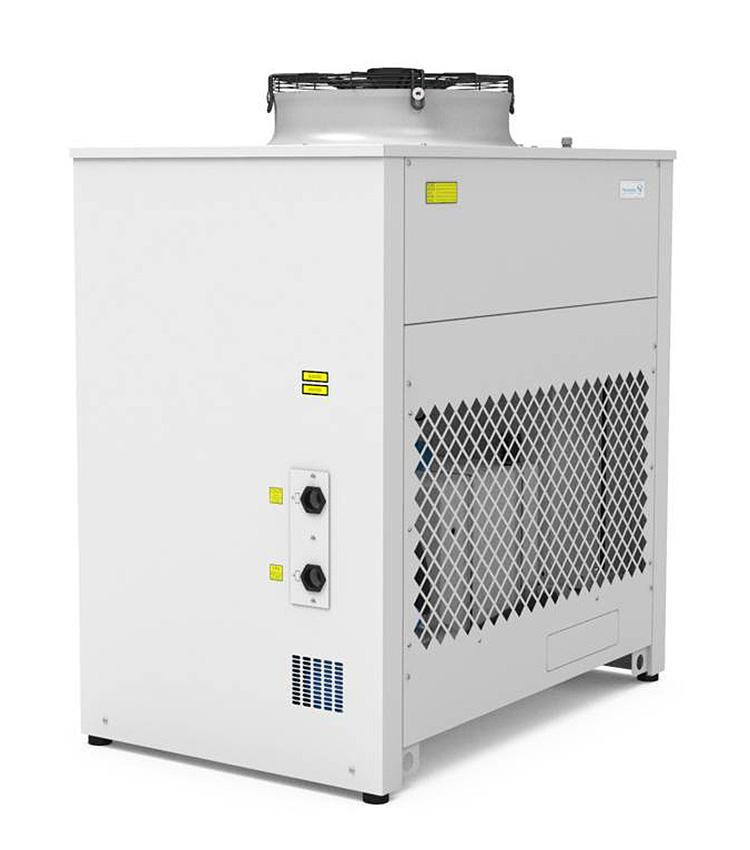

Chiller, Indoor/Outdoor, NEMA 12/4, 460VAC, 89053 BTU, RAL 7035 Light Gray (Must Ship via Truck)
- Weight:
- 888.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.
Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.
They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.
Features Include:
- Rated Voltage: 400/460 VAC, 50/60 Hz ±10 %
- Max Power Consumption: 12.1/14.2 kW
- Max Current Consumption: 22/22.5 A
- Starting Current: 89.9/98.7 A
- Control Voltage: 24V AC
- Cooling Capacity (with pump): 14/15.4 kW
- Btu/h Capacity: 89,053
- kW Capacity: 26.1
- Flow Rate (GPM): 22
- Medium: Water/Glycol – 80/20%
- Pump Pressure (psig): 2.5 bar
- Tank Volume:18.492 gal
- Refrigerant type: R410A
- Connections (medium) IG (bsp): 1-1/4”
- Design Housing/Cover: powder coated: RAL 7035 (light gray)
- Dimensions (W x D x H): 66.14173 x 31.1024 x 55.51181 inches
