42030805015

Features Include:

• Cooling Capacity (with pump): 8/8.8 kW
• Flow Rate (pump): 17 l/min
• Pump Pressure: 3 bar
• Max Power Consumption: 3.3/4.6 kW
• Max Current Consumption: 7.6/8.3 A
• Starting Current: 28/30.5 A
• Control Voltage: 24V AC
• Protection system according to EN 60529: IP54
• Robust industry standard
• Fluid cooling with water, water/glycol mixtures and low-viscosity oils*
• Steel housing with thick powder coating
• Identical basic housing for oil and water cooling
• Separate cooling circuit and hydraulic circuit
• Equipped with a programmable control module that allows small hysteresis of the temperature of the cooling medium

Technical Information:

• Pfannenberg EB 65 WT | 80 WT | EB 95 WT Chillers Technical Data

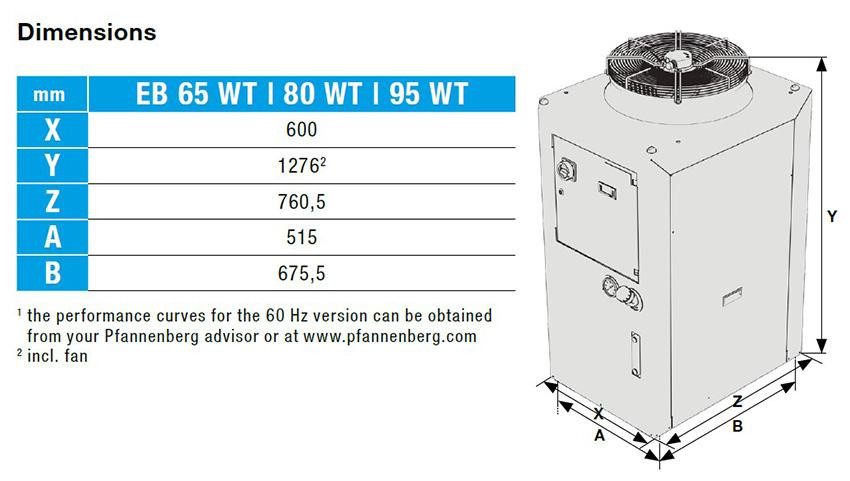

• Pfannenberg EB 65 WT | 80 WT | EB 95 WT Chillers Dimensional Drawings
• Pfannenberg EB 80 WT Hydraulic Diagram
• Pfannenberg EB 2.0 Operating Envelope
• Pfannenberg EB 2.0 ECO Liquid Cooling Chiller Operating and Maintenance Instructions
