42130655011
Alt: 421 3065 5011, CCE 6601
$12,791.22

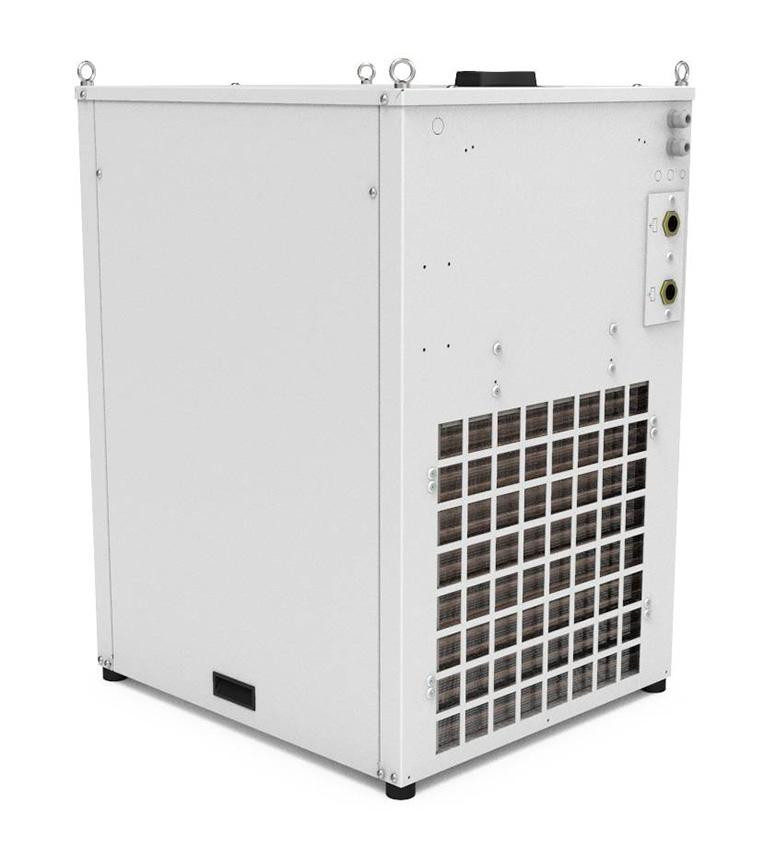

Chiller, Indoor Only, IP54, 460VAC, 22000 BTU, RAL 7035 Light Gray (Must Ship via Truck)
- Weight:
- 251.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.
Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.
They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.
Features Include:
- Stand-alone chiller
- Fluid cooling with water or water/glycol mixtures
- Steel housing with thick powder coating
- Robust industry standard with preassembled eyebolts
- Reliable easy to read level indication
- Mounting on top of the enclosure is possible
- Integration of project-specific additional components is possible on request
- Separate cooling circuit and hydraulic circuit
- Equipped with a programmable control module that allows small hysteresis of the temperature of the cooling medium
- Rated Voltage: 400/460VAC ±10%, 3-phase, 50/60Hz
- Control Voltage: 24VAC
- Max Power Consumption: 4.1/5 kW
- Max Current Consumption: 9.5/10 A
- Starting Current: 52/48 A
- Flow Rate (pump): 17/min
- Pump Pressure: 2.6 bar
