Carlo Gavazzi
CGT-12M-4.0
Overload Relay, Thermal, Miniature, Class 10 Bimetallic Overload for CGMS Contactors, Motor Protection Range 2.5-4 Amps (TOR 12M 2.5-4)
$38.40
Available Now!
Available Now!
(16 in stock)
CGT-12M-6.0
Alt: Minimum Order 1 is Limited to Available Stock Only!
$38.40
Overload Relay, Thermal, Miniature, Class 10 Bimetallic Overload for CGMS Contactors, Motor Protection Range 4-6 Amps, (TOR 12M 4-6)
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- DIN rail or screw mountable with the optional base AZ-12H

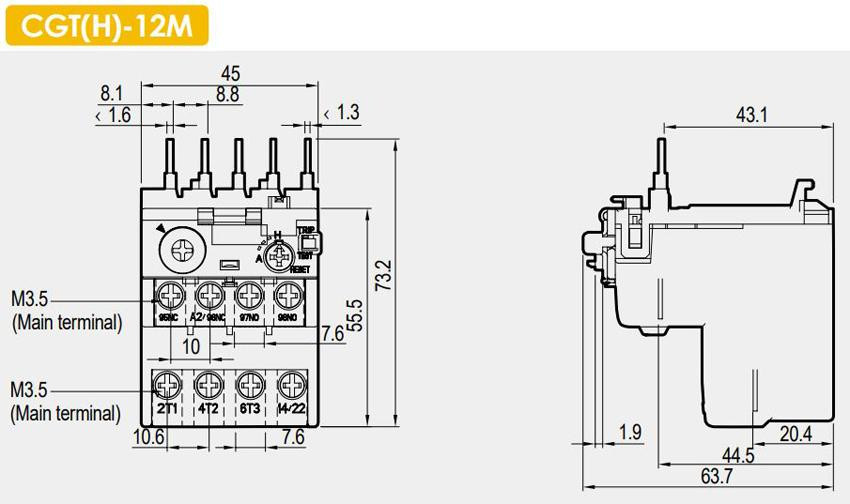

- Small physical size : 44 mm wide
- 1NO+1NC trip contacts
- Trip class 10A according to IEC60947-4-1
- Differential current/Phase failure protection : CGT types
- Non-differential CGTH types are available for the economic solution
- Ambient compensated -5 to 40
- Manual/Automatic reset convertible
- Remote reset is optional
- Trip free designed
Technical Information:
Learn more about Contactors, Starters & Overload Relays here!
