CFW500C16P0T4DB20
Alt: 12105969
$862.21
VFD, 10hp, 3 Phase, 380-480VAC, 16A, C Frame, with Brake, 8.3 x 5.3 x 6.5, IP20
- Weight:
- 6.50 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Specifications
Alternate Part Number
12105969
Horsepower
10 hp
Housing/Enclosure
IP20
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
CFW500 Series
Options
DIN Rail Mount, Enclosed, Keypad, Pump Genius Software
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
High Performance
Warranty
18 Months
Height
8.3
Weight
6.5
Length/Depth
6.5
Width
5.3
Features Include:
- Horsepower: 10 HP
- Rated Input Voltage: 380-480 V, 3-Phase
- Rated Output: 24Vcc, 3 phase
- Rated Current: 16 Amp

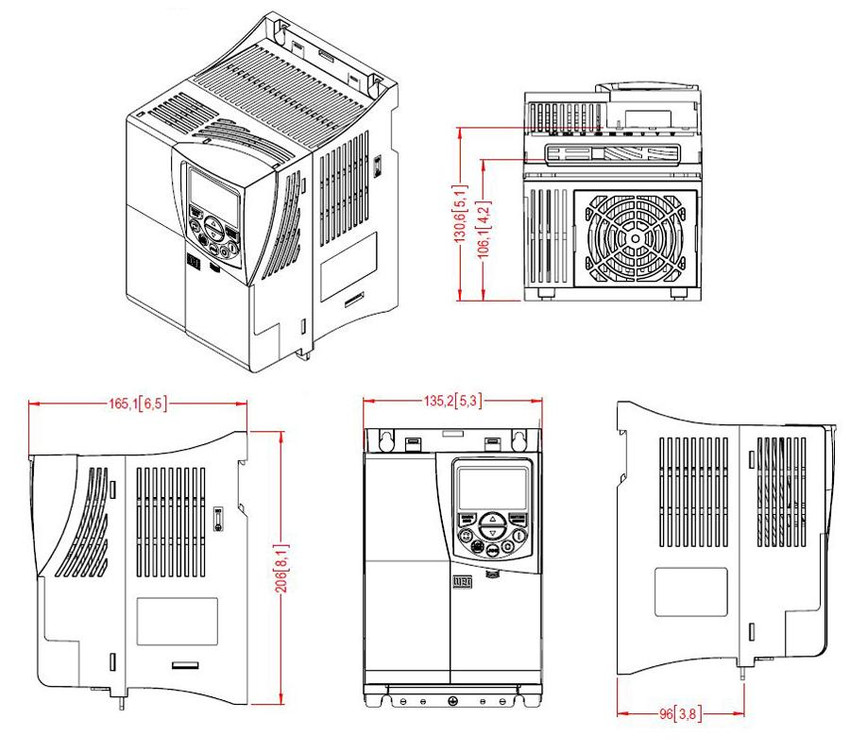

- Dimensions (H x W x D): 210 mm / 8.3 in x 135 mm / 5.31 in x 165 mm / 6.5 in
- Housing: IP20
Series Features Include:
- Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM);
- Selectable plug-in modules;
- Plug and Play philosophy;
- Built-in operating and programming interface (HMI);
- Built-in RS485 port (in any selected plug-in module);
- Pump Genius: functions dedicated to driving pumps;
- Safety Function: STO and SS1 level SIL 3 / PLe;
- SoftPLC - built-in PLC functionalities;
- Braking IGBT (available from frame B);
- 3C2 or 3C3 protection class for application in environments with corrosive chemicals;
- IP20 (standard) and NEMA1 (optional) protection ratings;
- Fan with quick exchange system;
- Internal RFI filter (optional);
- USB communication port (CFW500-CUSB accessory);
Downloads
- Weg CFW500C16P0T4DB20 Drive Datasheet
- Weg CFW500 IP20 Generation-1 Machinery Drive Brochure
- Weg CFW500 Installation & Power Connections Pocket Guide
- Weg CFW500 Quick Installation Guide
- Weg CFW500 Quick Parameter Reference
- Weg CFW500 Quick Setup Guide
- Weg CFW500 Quick Setup Guide Part 2
- Weg CFW500 Machinery Drives User's Manual
- Weg CFW500 Machinery Drives Programming Manual
- Weg CFW500 Pump Genius Simplex, Multipump & Multiplex Application Manual
- Weg CFW500 Solar Pump Drive Application Manual
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
