Carlo Gavazzi

CA18EAN12BPA2IO

Alt: Manufacturer Minimum Order 5 Pieces

$153.60

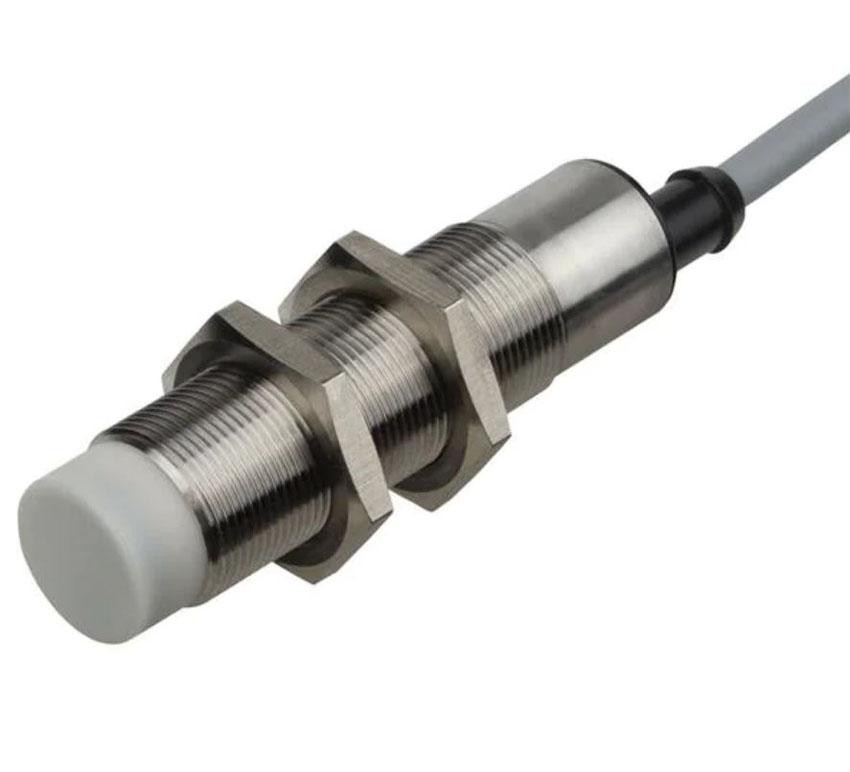

Capacitive Proximity Sensor, SS, M18, IO-Link, Non-Flush, 12mm Range, 2m PVC Cable, Selectable Functions: NPN, PNP, Push-Pull, External: Input (only pin 2) or Teach Input (only pin 2), NO or NC, Minimum Order 5 Pieces, Price per Piece

Minimum Purchase:
5 units
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
CA18EAN12BPA2IO
CA18EAN12BPA2IO
CA18EAN12BPA2IO
CA18EAN12BPA2IO
Description

Features Include:

  • Rated operational voltage (UB): 10 - 40 VDC (ripple included)
  • Ripple (Urpp): ≤ 10%
  • No load supply current (Io): ≤ 20 mA
  • Rated insulation voltage (Ui): 50 VDC
  • Power-ON delay (tv): ≤ 300 ms

Main Functions:

  • Sensing distance and hysteresis.
  • Sensing modes: single point or two point or window mode.
  • Timer functions like: On-delay, Off delay, One shot leading edge or trailing edge.
  • Logic functions such as: AND, OR, X-OR and SR-FF.
  • External input.
  • Logging functions: Maximum temperatures, minimum temperatures, operating hours, operating
    cycles, power cycles, minutes above maximum temperature, minutes below minimum temperature,
    etc.
