CA18FAF08BPA2IO
Alt: Minimum Order 5 Pieces, Price per Piece
$302.40

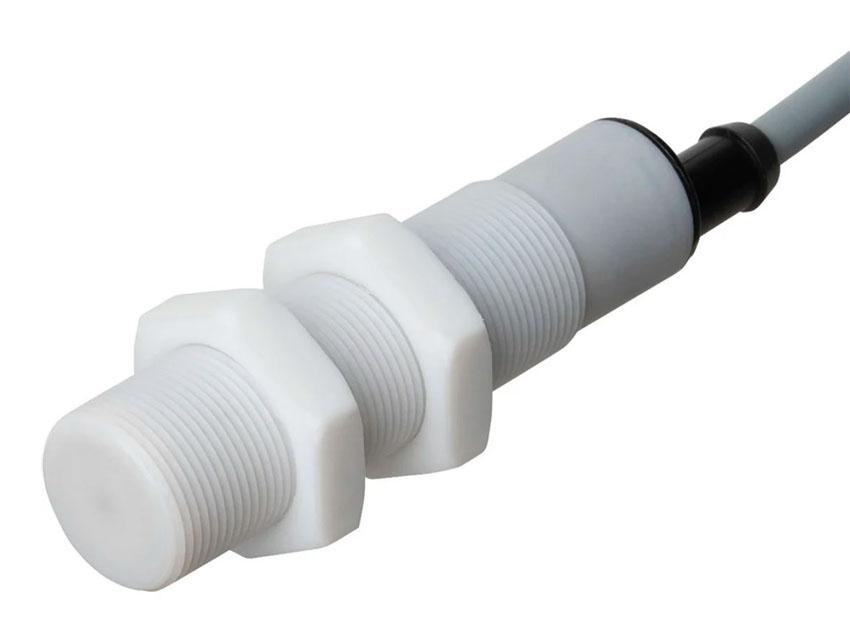

Capacitive Proximity Sensor, PFTE Housing, M18, Flush, IO-Link, 8mm Range, 2m PVC Cable, Selectable Functions: NPN, PNP, Push-Pull, External: Input (only pin 2) or Teach Input (only pin 2), NO or NC, Pri
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Rated operational voltage (UB): 10 - 40 VDC (ripple included)
- Ripple (Urpp): ≤ 10%
- No load supply current (Io): ≤ 20 mA
- Rated insulation voltage (Ui): 50 VDC
- Power-ON delay (tv): ≤ 300 ms
- Housing: PFTE
Main Functions:
- Sensing distance and hysteresis.
- Sensing modes: single point or two point or window mode.
- Timer functions like: On-delay, Off delay, One shot leading edge or trailing edge.
- Logic functions such as: AND, OR, X-OR and SR-FF.
- External input.
- Logging functions: Maximum temperatures, minimum temperatures, operating hours, operating
cycles, power cycles, minutes above maximum temperature, minutes below minimum temperature,
etc.
