CFAK 30N1200
Alt: 11001678
$349.00

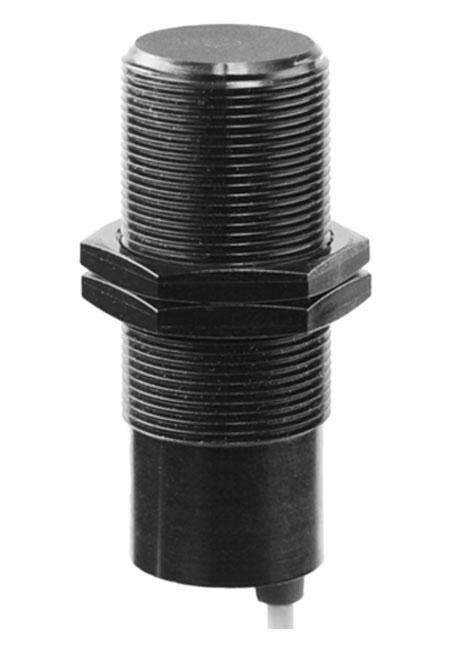

Capacitive Proximity Sensor, Ø30mm Cyl., 30mm Range, Non-Flush, NPN NO, 2m Cable, IP67/65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Capacitive Proximity Sensor, Ø30mm Cyl., 30mm Range, Non-Flush, NPN NO, 2m Cable, IP67/65
Features Include:
- Nominal Sensing Distance Sn: 30 mm
- Nominal Sensing Distance Sn Adjustable: 5 - 30 mm
- Mounting Type: Non-flush
- Sensitivity Adjustment: Potentiometer, 18 turn
- GND Electrode: no
- Temperature Drift: ± 15 % (+10 - +70°C)
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 20 mA
- Output Current: < 200 mA
- Switching Frequency: < 50 Hz
- Output Indication: LED yellow
- Housing Material: PBT
