Baumer
CFAK 18N3200
Capacitive Proximity Sensor, Ø18mm Cyl., 15mm Range, Non-Flush, NPN NC, 2m Cable, IP67/65
$339.00

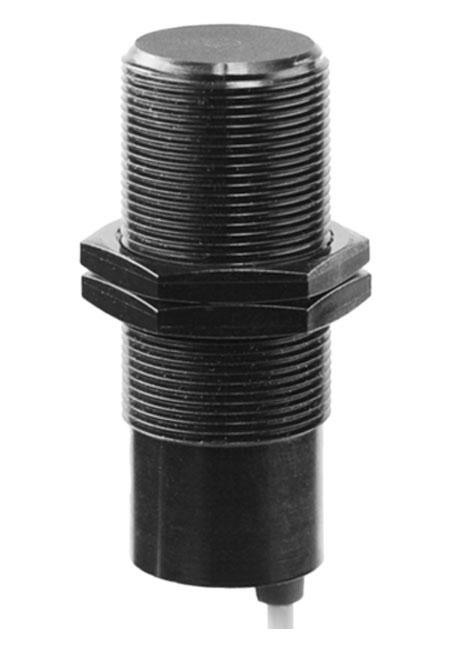

CFAK 30N1100
Alt: 11001683
$339.00
Capacitive Proximity Sensor, Ø30mm Cyl., 8mm Range, Non-Flush, NPN NO, 2m Cable, IP67/65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Capacitive Proximity Sensor, Ø30mm Cyl., 8mm Range, Non-Flush, NPN NO, 2m Cable, IP67/65
Features Include:
- Nominal Sensing Distance Sn: 8 mm
- Mounting Type: Non-flush
- Sensitivity Adjustment: no
- GND Electrode: no
- Temperature Drift: ± 15 % (0 - +70°C)
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 20 mA
- Output Current: < 200 mA
- Switching Frequency: < 50 Hz
- Output Indication: LED yellow
- Housing Material: PBT
