$324.00

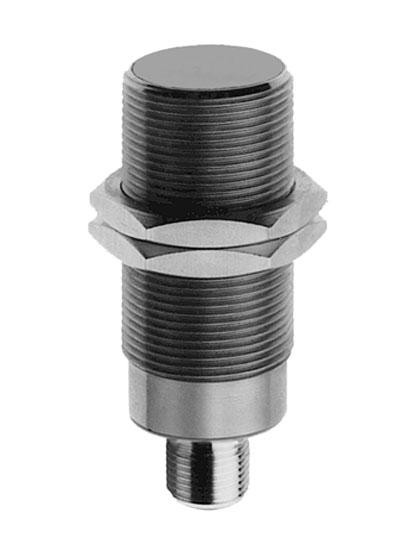

CFAM 30P1600/S14
Alt: 10119342
$309.00
Capacitive Proximity Sensor, Ø30mm Cyl., 15mm Range, PNP NO, M12, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Capacitive Proximity Sensor, Ø30mm Cyl., 15mm Range, PNP NO, M12, IP65
Features Include:
- Nominal Sensing Distance Sn: 15 mm
- Nominal Sensing Distance Sn Adjustable: 4 - 15 mm
- Mounting Type: Flush
- GND Electrode: Yes
- Temperature Drift: ±15% (+10 - +70°C)
- Sensitivity Adjustment: Potentiometer, 18 turn
- Output Indicator: LED yellow
- Switching Frequency:< 50 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 20 mA
- Voltage Drop: < 1.5 VDC
- Output Current: < 200 mA
- Housing Material: Nickel Plated Brass
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer

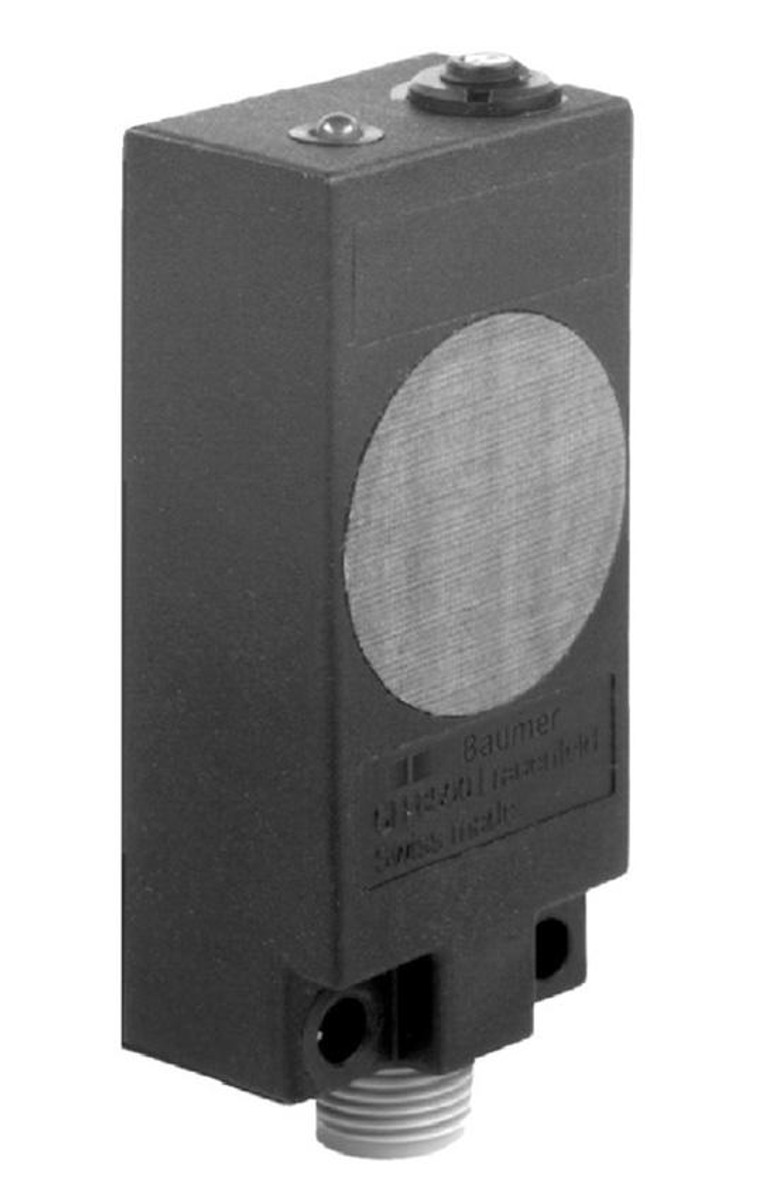

CFDK 30P1600/S14
Capacitive Proximity Sensor, Flush, 10-30VDC, 15mm Sn Sensing Distance, PNP, NO, 15 Turn Potentiometer, M12 Connector, PBT Housing, 30 x 75mm (WL), -25 to +75°C, IP65
$339.00
$309.00
Baumer
CFAM 12N1600/S14
Capacitive Proximity Sensor, Ø12mm Cyl., 4mm Range, Flush, NPN NO, 10-30VDC, M12, IP65
$354.00
Baumer
CFAM 30N1600/S14
Capacitive Proximity Sensor, Ø30mm Cyl., 15mm Range, Flush, NPN NO, M12, IP65
$309.00
Baumer

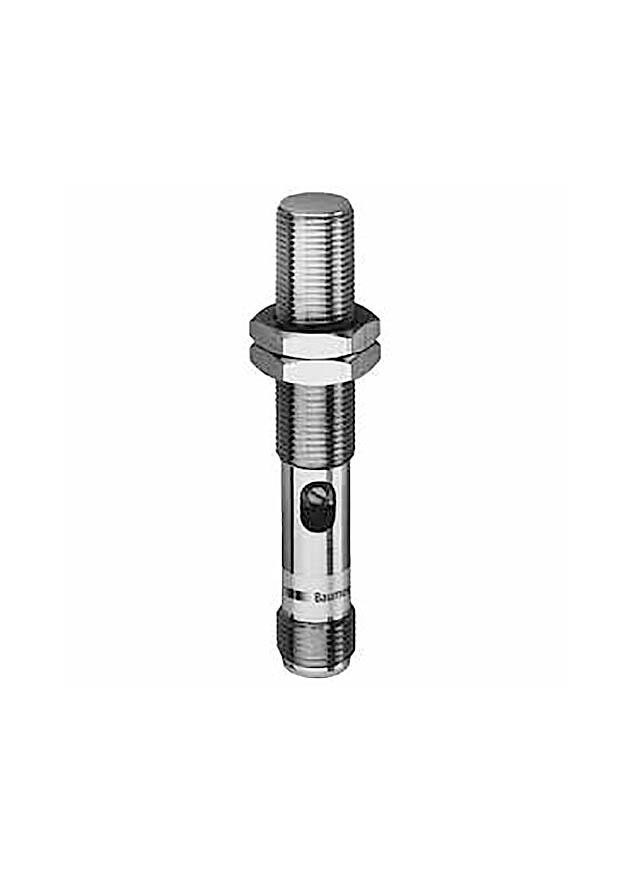

CFAM 12P1600/S14
Capacitive Proximity Sensor, Ø12mm Cyl., 4mm Range, Flush, PNP NO, M12, IP65
$354.00
Baumer

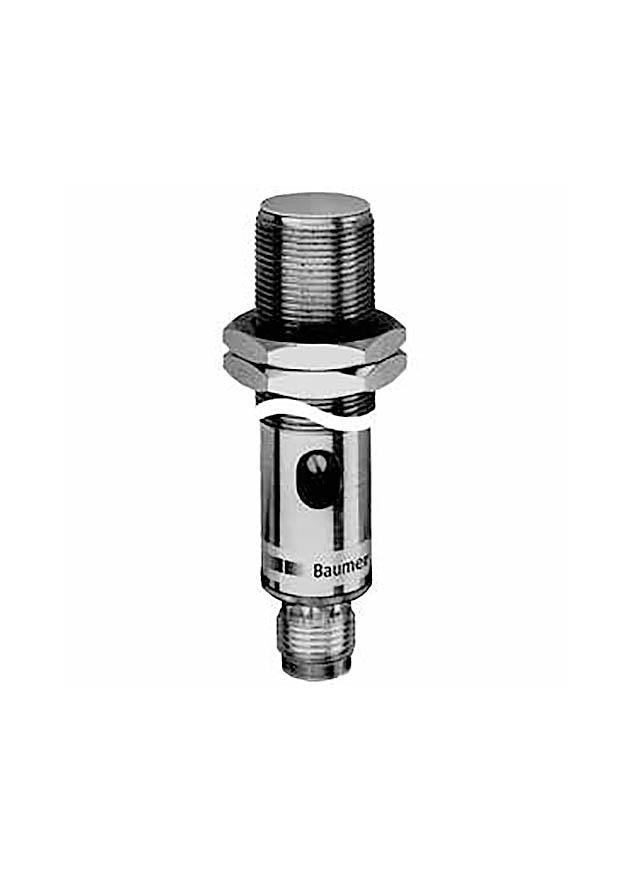

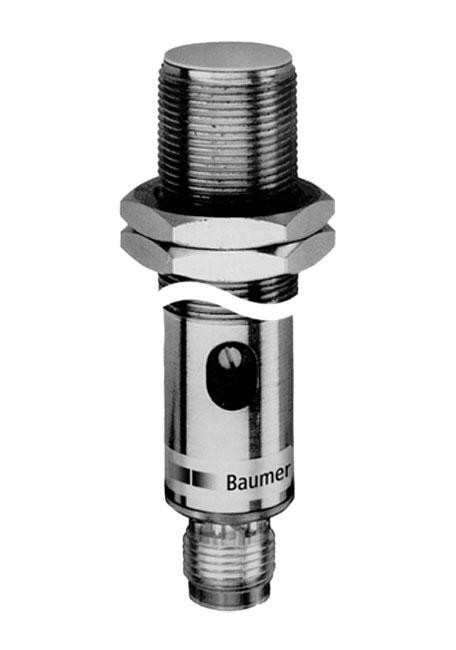

CFAM 18P1600/S14
Capacitive Proximity Sensor, Ø18mm Cyl., 8mm Range, Flush, PNP NO, M12, IP65
$324.00
$354.00
Baumer
CFAM 12N3600/S14
Capacitive Proximity Sensor, Ø12mm Cyl., 4mm Range, Flush, NPN NC, 10-30VDC, M12, IP65
$354.00
