Baumer
CFAH 30P3200/S14
Capacitive Proximity Sensor, Ø30mm Cyl, High Temp, 5mm Range, Non-Flush, PNP NC, M12, IP67
$909.00

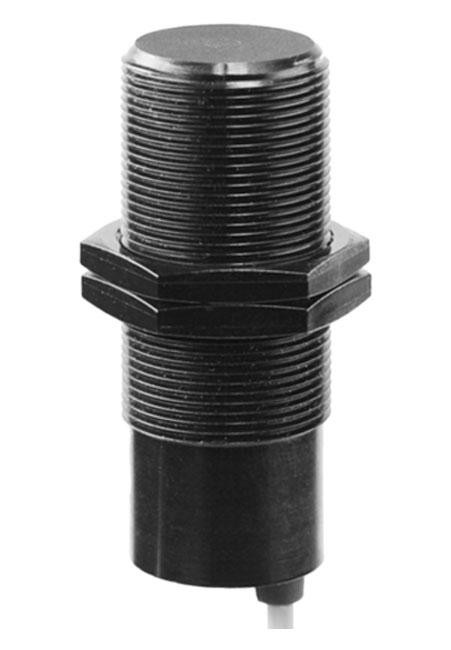

CFAK 30P3200
Alt: 11001677
$349.00
Capacitive Proximity Sensor, Ø30mm Cyl., 30mm Range, Non-Flush, PNP NC, 2m Cable, IP67/65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Capacitive Proximity Sensor, Ø30mm Cyl., 30mm Range, Non-Flush, PNP NC, 2m Cable, IP67/65
Features Include:
- Nominal Sensing Distance Sn: 30 mm
- Nominal Sensing Distance Sn adjustable: 5 - 30 mm
- Mounting Type: Non-flush
- Sensitivity Adjustment: Potentiometer, 18 turn
- GND Electrode: no
- Temperature Drift: ± 15 % (+10 - +70°C)
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 20 mA
- Output Current: < 200 mA
- Switching Frequency: < 50 Hz
- Output Indication: LED yellow
- Housing Material: PBT
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
CFAK 18N3200
Capacitive Proximity Sensor, Ø18mm Cyl., 15mm Range, Non-Flush, NPN NC, 2m Cable, IP67/65
$339.00
Baumer
CFAK 18P3200
Capacitive Proximity Sensor, Ø18mm Cyl., 15mm Range, Non-Flush, 10-30VDC, 2m Cable, IP67/65
$339.00
Baumer
CFAK 18P3100
Capacitive Proximity Sensor, Ø18mm Cyl., 5mm Range, Non-Flush, PNP NC, 2m Cable, IP67/65
$329.00
Baumer
CFAK 18P1200
Capacitive Proximity Sensor, Ø18mm Cyl., 15mm Range, Non-Flush, PNP NO, 2m Cable, IP67/65
$339.00
Baumer
CFAK 30P1100
Capacitive Proximity Sensor, Ø30mm Cyl., 8mm Range, Non-Flush, PNP NO, 2m Cable, IP67/65
$339.00
Baumer
CFAK 30N3200
Capacitive Proximity Sensor, Ø30mm Cyl., 30mm Range, Non-Flush, NPN NC, 2m Cable, IP67/65
$349.00
Baumer
CFAK 30P1200
Capacitive Proximity Sensor, Ø30mm Cyl., 30mm Range, Non-Flush, PNP NO, 2m Cable, IP67/65
$349.00
Baumer
CFAK 12P3103
Capacitive Proximity Sensor, Ø12mm Cyl., 5mm Range, Non-Flush, PNP NC, 2m Cable, IP67
$239.00
