Baumer
CFBM 20N3600
Capacitive Proximity Sensor, Ø20mm Cyl., 10mm Range, Flush, NPN NC, 2m Cable, IP65
$369.00
CFBM 20P3600
Alt: 10119697
$369.00
Capacitive Proximity Sensor, Ø20mm Cyl., 10mm Range, Flush, PNP NC, 2m Cable, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

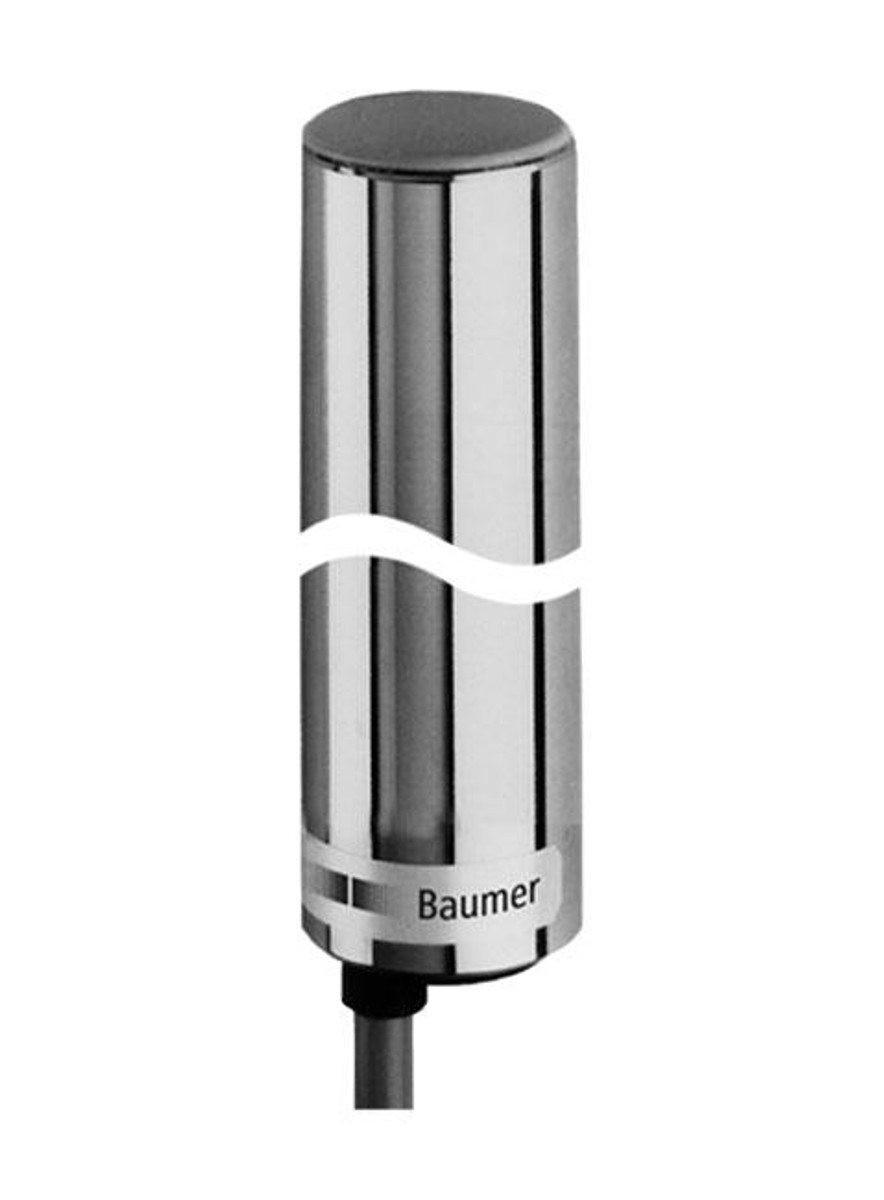

Capacitive Proximity Sensor, Ø20mm Cyl., 10mm Range, Flush, PNP NC, 2m Cable, IP65
Features Include:
- Nominal Sensing Distance Sn: 10 mm
- Nominal Sensing Distance Sn Adjustable: 2 - 10 mm
- Mounting Type: Flush
- GND Electrode: Yes
- Temperature Drift: ±15 % (+10 - +70°C)
- Sensitivity Adjustment: Potentiometer, 18 turn
- Output Indicator: LED yellow
- Switching Frequency:< 50 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 20 mA
- Voltage Drop: < 2.5 VDC
- Output Current: < 200 mA
- Housing Material: Nickel Plated Brass
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
CFBM 20P1600
Capacitive Proximity Sensor, Ø20mm Cyl., 10mm Range, Flush, PNP NO, 2m Cable, IP65
$369.00
Baumer
CFBM 20N1600
Capacitive Proximity Sensor, Ø20mm Cyl., 10mm Range, Flush, NPN NO, 2m Cable, IP65
$369.00
