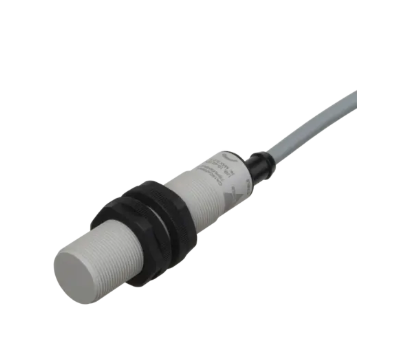

Carlo Gavazzi
CA18CAF08PAM1
Capacitive Proximity Sensor, Ø18mm, Flush, 10-40VDC, 8mm Range, PNP NO/NC, M12 Plug, IP67
$144.00
CA18CAF08PA
Alt: Minimum Order 5 Pieces, Price per Piece
$140.00
Capacitive Proximity Sensor, Ø18mm, Flush, 10-40VDC, 8mm Range, PNP NO/NC, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Capacitive Proximity Sensor, Ø18mm, Flush, 8mm Range, PNP NO/NC, 2m Cable
Specifications
Connection
w/Cable
Material
Plastic
Normally Open/Closed
Normally Open/Closed (NO/NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
CA18 Series
Shielded/Unshielded
Shielded - Flush
Size
18mm
Type of Sensor
Capacitive
All - Voltage
DC
Warranty
1 Year
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece
Weight
0.5
Features Include:
- 4TH Generation TRIPLESHIELD
- Adjustable sensing distance: 2 - 10 mm Flush or 3-15 mm Non-flush
- Protection: short-circuit, transients and reverse polarity
- Dust and humidity compensation
- Dust or Temperature alarm output
- Rated operational voltage: 10-40 VDC
- Output: DC 200 mA, NPN or PNP
- Standard Output: NO and NC
- LED indications for Power-supply, Target and Stability
- IP67, IP68, IP69K, NEMA 1, 2, 4, 4X, 5, 6, 6P, 12
