Baumer
CFAM 18P1600/S14

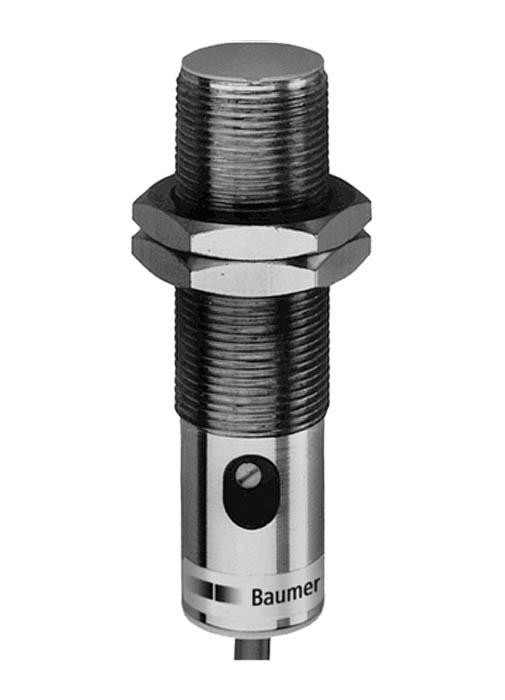

Capacitive Proximity Sensor, Ø18mm Cyl., 8mm Range, Flush, PNP NO, M12, IP65
$324.00
CFAM 18P1600
Alt: 10236458
$339.00
Capacitive Proximity Sensor, Ø18mm Cyl., 8mm Range, PNP NO, 2m Cable, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Capacitive Proximity Sensor, Ø18mm Cyl., 8mm Range, PNP NO, 2m Cable, IP65
Features Include:
- Nominal Sensing Distance Sn: 8 mm
- Nominal Sensing Distance Sn Adjustable: 2 - 8 mm
- Mounting Type: Flush
- GND Electrode: Yes
- Temperature Drift: ±15% (+10 - +70°C)
- Sensitivity Adjustment: Potentiometer, 12 turn
- Output Indicator: LED yellow
- Switching Frequency:< 50 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 20 mA
- Voltage Drop: < 1.5 VDC
- Output Current: < 200 mA
- Housing Material: Nickel Plated Brass
