CA30CAF16BPM1IO
Alt: Manufacturer Minimum Order 5 Pieces
$239.20

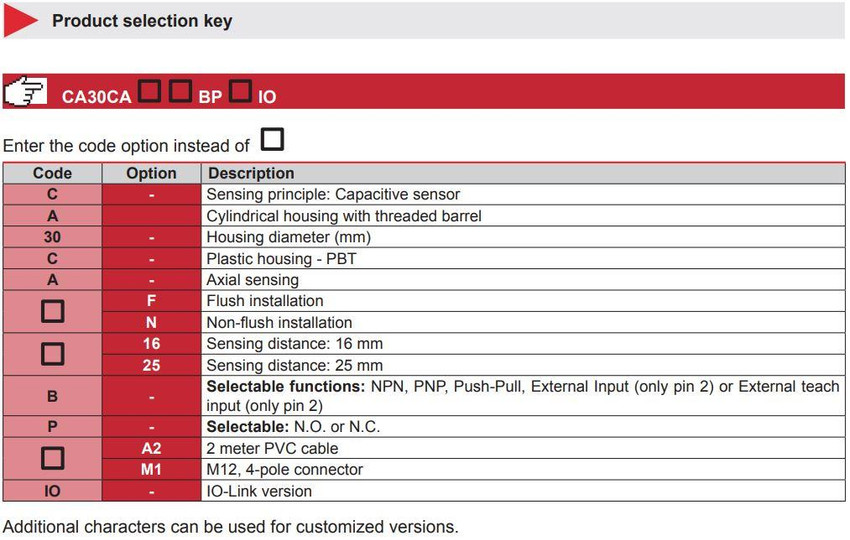

Capacitive Proximity Sensor, M30, PBT Plastic Housing, Flush, IO-Link, 16mm Range, Quick Disconnect Plug, Selectable Functions: NPN, PNP, Push-Pull, External: Input or Teach Input (Only Pin 2), NO or NC, Manufacturer Minimum Order 5 Pieces,
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Features Include:
- Rated operational voltage (UB): 10 - 40 VDC (ripple included)
- Ripple (Urpp): ≤ 10%
- No load supply current (Io): ≤ 20 mA
- Rated insulation voltage (Ui): 50 VDC
- Power-ON delay (tv): ≤ 300 ms
- IP rating: IP 67, IP 68/60 min., EN 60529; EN 60947-1, IP69K* DIN 40050-9
- NEMA Enclosure Types 1, 2, 4, 4X, 5, 6, 6P, 12 NEMA 250
Main Functions:
- Sensing distance and hysteresis.
- Sensing modes: single point or two point or window mode.
- Timer functions like: On-delay, Off delay, One shot leading edge or trailing edge.
- Logic functions such as: AND, OR, X-OR and SR-FF.
- External input.
- Logging functions: Maximum temperatures, minimum temperatures, operating hours, operating
cycles, power cycles, minutes above maximum temperature, minutes below minimum temperature,
etc.
