CA30CAF16PAM1
Alt: Minimum Order 5 Pieces, Price per Piece, 4th Generation TRIPLESHIELD
$235.20

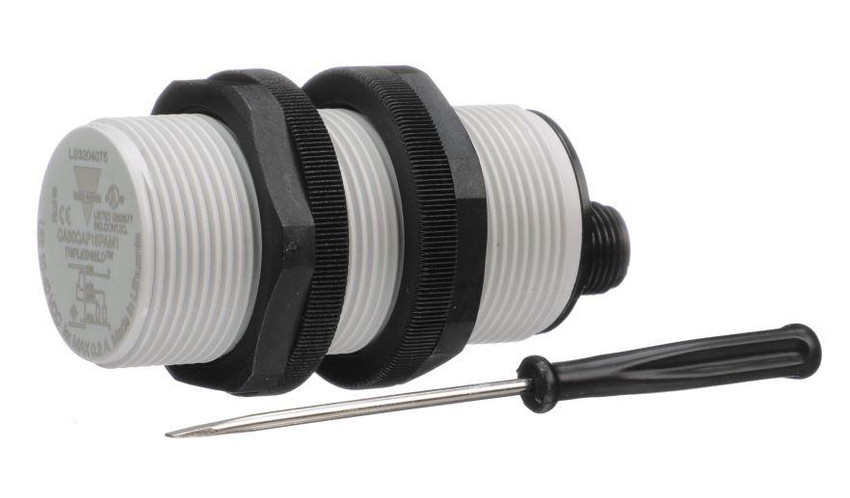

Capacitive Proximity Sensor, M30, Flush, 10-40VDC, PNP NO+NC, 16mm Sensing Range, M12 x 1 4-Pin Quick Disconnect Plug, Thermoplastic Polyester Housing
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece, 4th Generation TRIPLESHIELD
Connection
Plug
Material
Plastic
Normally Open/Closed
Normally Open/Closed (NO/NC)
NPN or PNP
NPN/PNP Selectable
All - Specific Ratings
IP67, IP68, IP69K
Shielded/Unshielded
Shielded - Flush
Size
30mm
Type of Sensor
Capacitive
Warranty
1 Year
Weight
0.5
Series
CA30 Series
Series Features Include:
- 4TH Generation TRIPLESHIELD
- Adjustable sensing distance: 2 - 20mm flush or 4-30mm non-flush
- Protection: short-circuit, transients and reverse polarity
- Dust and humidity compensation
- Dust or temperature alarm output
- Rated operational voltage: 10-40 VDC
- Output: DC 200 mA, NPN or PNP
- Standard Output: NO and NC
- LED indications for power-supply, output and stability
- IP67, IP68, IP69K, Nema 1, 2, 4, 4X, 5, 6, 6P, 12
